X Stages

LS-6042-C1

1

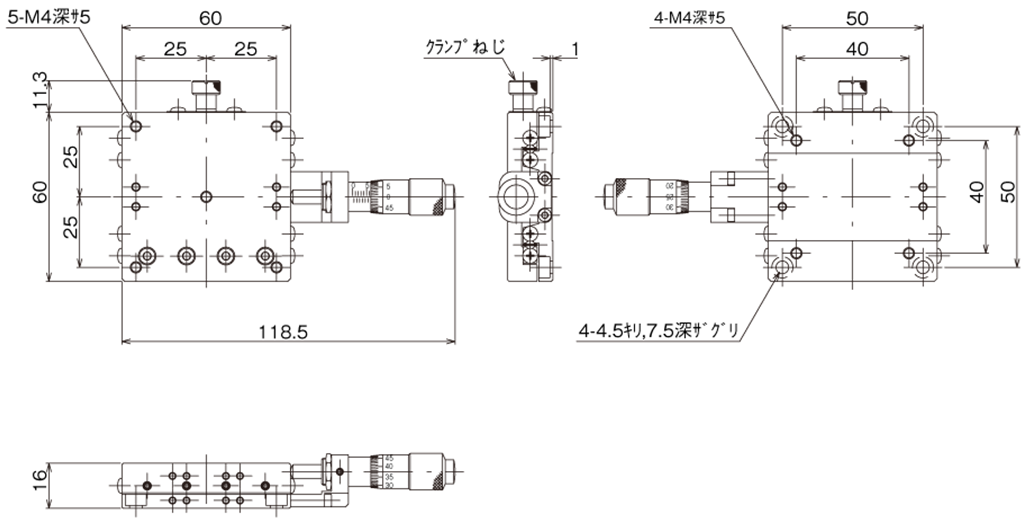

High-grade X axis stage 60 x 60 (Standard type)
Estimate separately
Travel +/-6.5 mm
Table size 60 mm x 60 mm
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

A high precision and high rigid manual stage by using HG-VCR method for the moving guide.
There are standard types and symmetrical types, and symmetrical configurations are also possible.
Transfer method is standard micrometer head.
Clamp method is plate clamp.
It is widely used for precision positioning applications such as cameras, sensors, and workpieces.
▲PAGE TOP

Specifications

Direction of travel X axis one direction
Table size 60 mm x 60 mm
Clamp method Clamp plate
Mounting position Center
Transfer mechanism CMH-13RM (Standard micrometer head)
Travel +/-6.5 mm
Lead of actuator 0.5 mm
Scale interval Micrometer head 0.01 mm
Minimum resolution 0.003 mm
Guiding method HG-VCR (V-groove and cross rollers)
Travel accuracy HV Straightness (horizontal and vertical) 0.001 mm
Travel accuracy YP Yawing 15 sec, Pitching 25 sec
Allowable moment Yawing 1200 N･cm, Pitching 1200 N･cm, Rolling 1200 N･cm
Moment rigidity Yawing rigidity 0.04 sec/N･cm, Pitching rigidity 0.04 sec/N･cm, Rolling rigidity 0.02 sec/N･cm
Parallelism 0.015 mm
Parallelism of motion 0.007 mm
Load capacity 196 N (20 kgf)
Weight 0.4 kg
Material / Surface treatment Stainless steel/Black chromium oxide
Standard accessories Inspection certificate
Mounting screw : Hexagon socket head cap screw M4, 4 screws
