X Stages

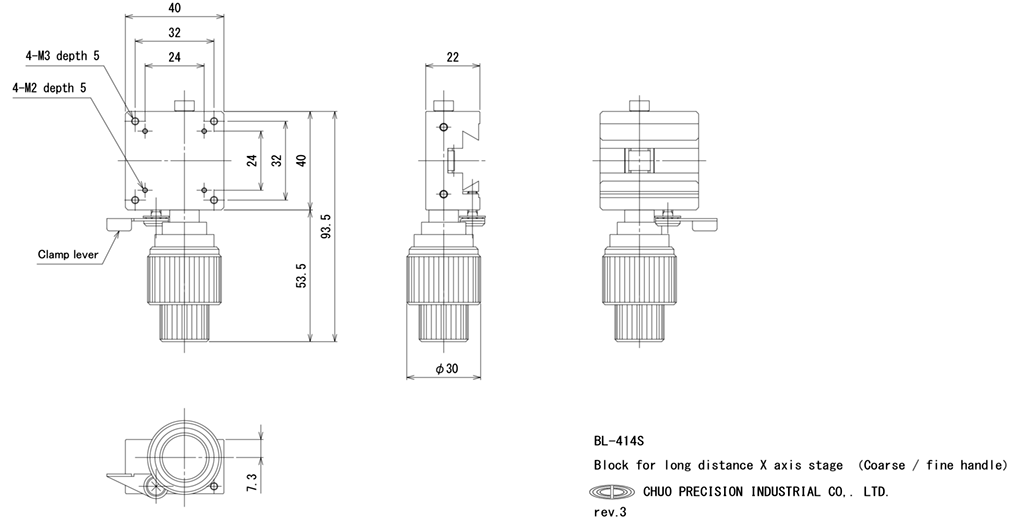

BL-414S

1
Block for long distance X axis stage (Coarse/fine handle)
Estimate separately
Table size 40 mm x 40 mm
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

A block for LS-414 series long distance stages. Can be added to rails.
There are 4 types of handles.Coarse/fine handle.
An index sticker is included. It can be pasted in any position.
▲PAGE TOP

Specifications

Table size 40 mm x 40 mm
Clamp method Lever type
Mounting position Double coarse handle
Lead of actuator Coarse approx. 25.5 mm, fine approx. 3.3 mm
Guiding method Dovetail
Weight 0.13 kg
Material / Surface treatment Aluminum alloy/Black Alumite
Standard accessories Grease (for sliding surface, and rack and pinion gear), index seal (for scale)
▲PAGE TOP

Supplementation
