X Stages

RX-X

1
X axis screw type stage
Estimate separately
Travel +/-7.5 mm
Table size 60 mm x 18 mm
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

A dovetail groove (D-T method) is used for the moving guide and a feed screw is used for the transfer method.
It is widely used for positioning applications such as cameras and sensors.
It can be fixed in any position using a lever type clamp with high holding power.
▲PAGE TOP

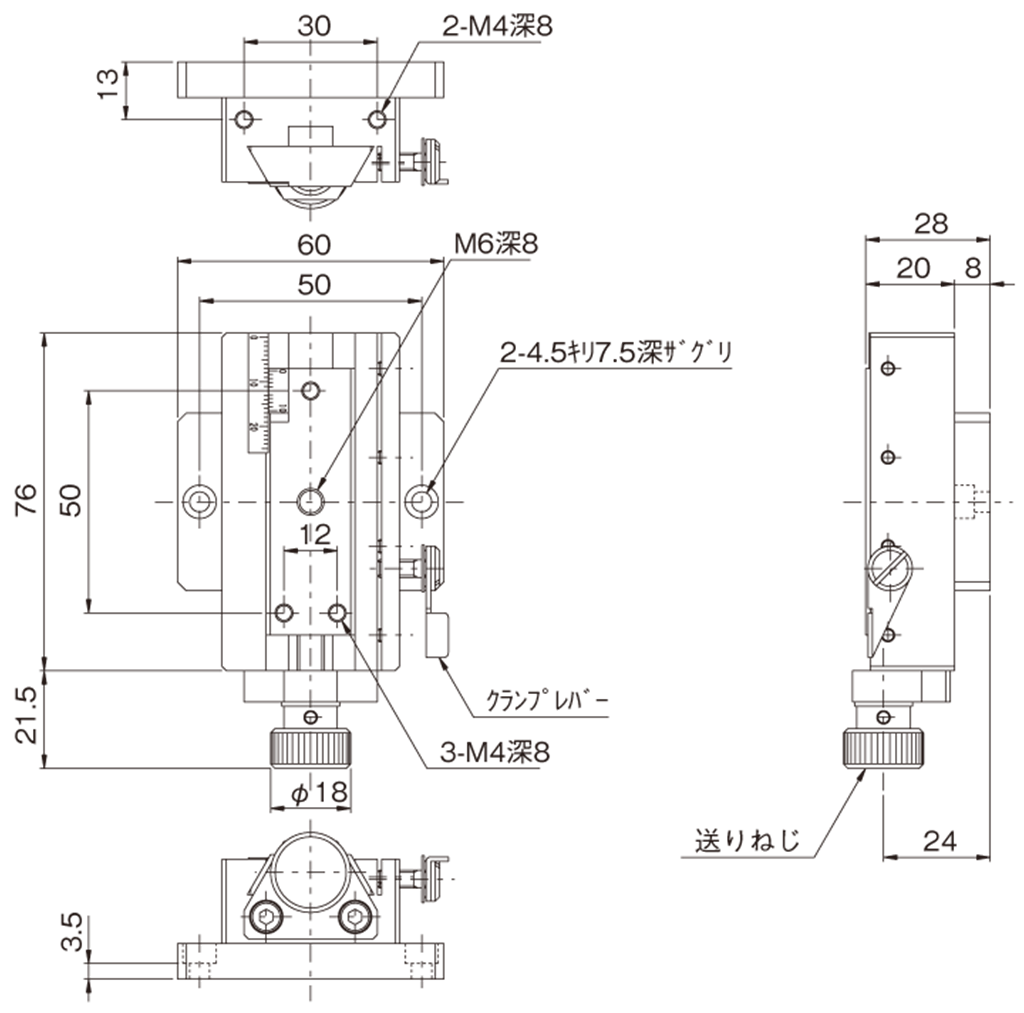

Specifications

Direction of travel X axis one direction
Table size 60 mm x 18 mm
Clamp method Lever type
Mounting position Center
Transfer mechanism Feed screw P=0.5 mm
Travel +/-7.5 mm
Lead of actuator Approx. 0.5 mm
Scale interval 0.1 mm
Guiding method Dovetail
Travel accuracy Straightness 0.03 mm
Load capacity 19.6 N (2 kgf)
Weight 0.32 kg
Material / Surface treatment Brass(table), Aluminum alloy(base)/Chromium, Black Alumite
Standard accessories Mounting screw : Hexagon socket head cap screw M4, 2 screws
