XY Stages

LD-3047-S8

1
High-grade aluminum XY axis stage 30 x 30 (Standard type)
Estimate separately
Travel +/-3 mm
Table size 30 mm x 30 mm
YESRoHS対応状況

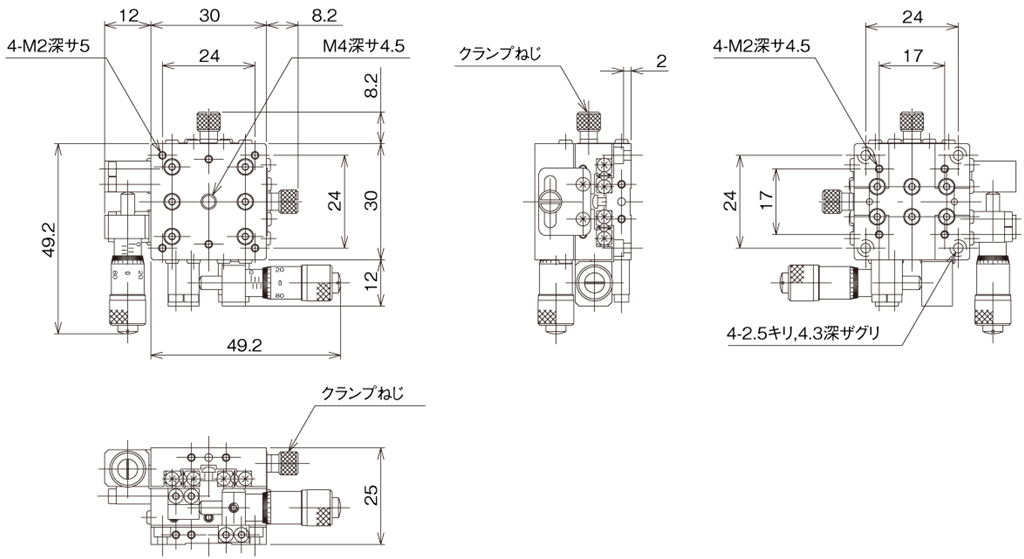

Product documentation

▲PAGE TOP

Description

Manual stage by using HG-VCR method for the moving guide and aluminum alloy as main material, achieving both rigidity and lightweight.
There are standard types and symmetrical types, and symmetrical configurations are also possible.
Transfer method is fine pitch micrometer head.
It is widely used for precision positioning applications such as cameras, sensors, and workpieces.
▲PAGE TOP

Specifications

Direction of travel XY axis two directions
Table size 30 mm x 30 mm
Clamp method Clamp plate
Mounting position Side
Transfer mechanism MHT3-6.5FPA (Fine pitch micrometer head)
Travel +/-3 mm
Lead of actuator 0.1 mm
Scale interval Micrometer head 0.002 mm
Minimum resolution 0.001 mm
Guiding method HG-VCR (V-groove and cross rollers)
Travel accuracy HV Straightness (horizontal and vertical) 0.002mm
Moment rigidity Yawing rigidity 2.00 sec/N・cm, Pitching rigidity 2.00 sec/N・cm, Rolling rigidity 2.00 sec/N・cm
Parallelism 0.050 mm
Parallelism of motion 0.020 mm
XY Perpendicularity 0.010 mm
Load capacity 19.6 N (2 kgf)
Weight 0.11 kg
Material / Surface treatment Aluminum alloy/Black Alumite
Standard accessories Inspection certificate
Mounting screw : Hexagon socket head cap screw M2, 4 screws
