XY Stages

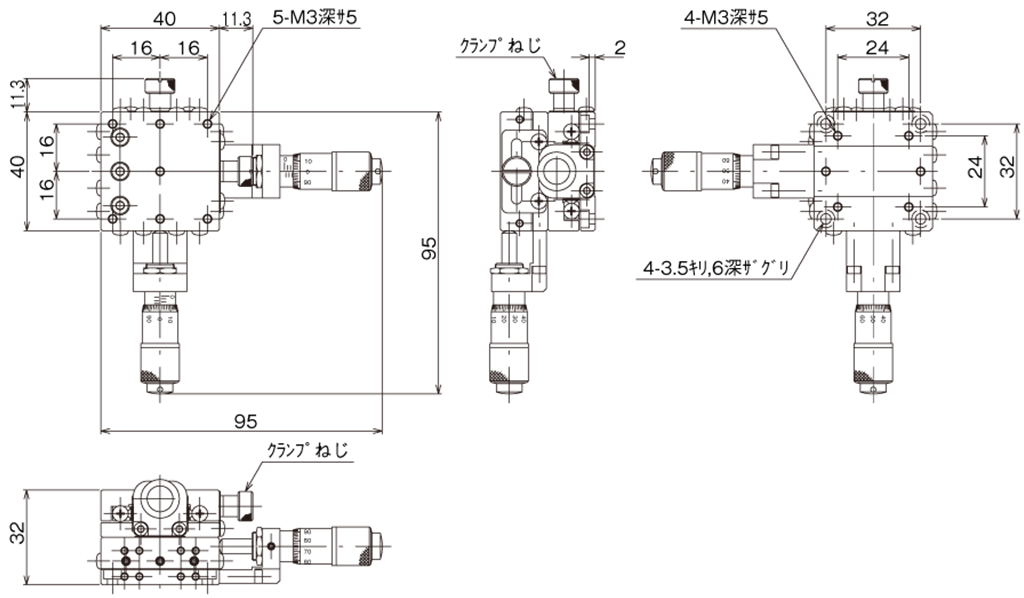

LD-4042-C8

1
High-grade XY axis stage 40 x 40 (Standard type)
Estimate separately
Travel +/-3 mm
Table size 40 mm x 40 mm
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

A high precision and high rigid manual stage by using HG-VCR method for the moving guide.
There are standard types and symmetrical types, and symmetrical configurations are also possible.
Transfer method is fine pitch micrometer head.
Clamp method is plate clamp.
It is widely used for precision positioning applications such as cameras, sensors, and workpieces.
▲PAGE TOP

Specifications

Direction of travel XY axis two directions
Table size 40 mm x 40 mm
Clamp method Clamp plate
Mounting position Center
Transfer mechanism MHS4-6.5FPA (Fine pitch micrometer head)
Travel +/-3 mm
Lead of actuator 0.1 mm
Scale interval Micrometer head 0.002 mm
Minimum resolution 0.001 mm
Guiding method HG-VCR (V-groove and cross rollers)
Travel accuracy HV Straightness (horizontal and vertical) 0.001mm
Travel accuracy YP Yawing 15sec, Pitching 25sec
Allowable moment Yawing 500 N･cm, Pitching 500 N･cm, Rolling 500 N･cm
Moment rigidity Yawing rigidity 0.08 sec/N・cm, Pitching rigidity 0.06 sec/N・cm, Rolling rigidity 0.06 sec/N・cm
Parallelism 0.030 mm
Parallelism of motion 0.014 mm
XY Perpendicularity 0.010 mm
Load capacity 95.2 N (9.7 kgf)
Weight 0.4 kg
Material / Surface treatment Stainless steel/Black chromium oxide
Standard accessories Inspection certificate
Mounting screw : Hexagon socket head cap screw M3, 4 screws
