XY Stages

LD-1047T-C1

0

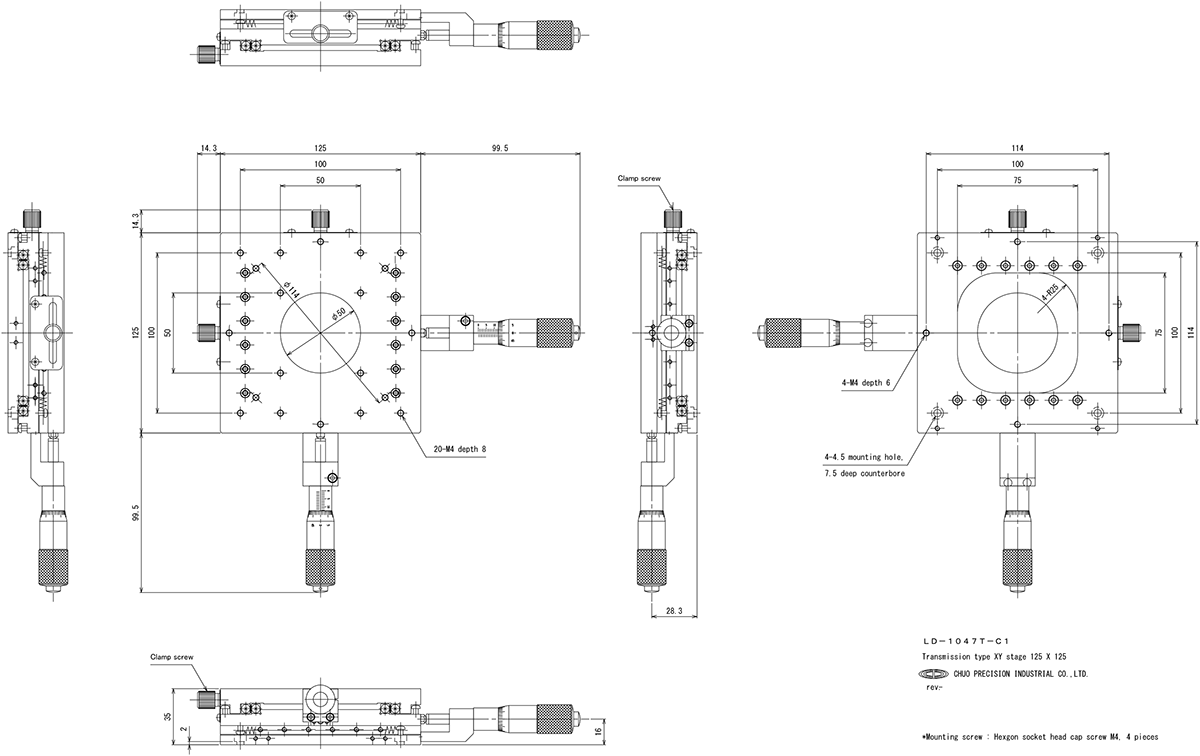

Transmission type XY stage 125 x 125
Estimate separately
Travel +/-12.5 mm
Table size 125 mm x 125 mm
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

125 mm x 125 mm transmission hole (through hole) type XY stage.
There is φ50 mm through hole in the center.
LD-1047T-C1 has a three-layer structure of lower, middle, and upper stages, it is thinner and lighter than regular XY stages.
It is widely used for precision positioning applications such as sensors and workpieces.
▲PAGE TOP

Specifications

Direction of travel XY axis two directions
Table size 125 mm x 125 mm
Clamp method Clamp plate
Mounting position Center
Transfer mechanism MHN1-25TA (Standard micrometer head)
Travel +/-12.5 mm
Lead of actuator 0.5 mm
Scale interval Micrometer head 0.01 mm
Minimum resolution 0.003 mm
Guiding method V-groove and cross rollers
Travel accuracy HV Straightness (horizontal and vertical) 0.003mm
Travel accuracy YP Yawing 15sec, Pitching 15sec
Moment rigidity Yawing rigidity 0.05 sec/N・cm, Pitching rigidity 0.05 sec/N・cm, Rolling rigidity 0.03 sec/N・cm
Parallelism 0.05 mm
XY Perpendicularity 0.02 mm
Load capacity 255 N (23 kgf)
Weight 4.3 kg
Material / Surface treatment Steel/Hard black chrome
Standard accessories Inspection certificate
Mounting screw : Hexagon socket head cap screw M4, 4 screws
