Z Lift Stages

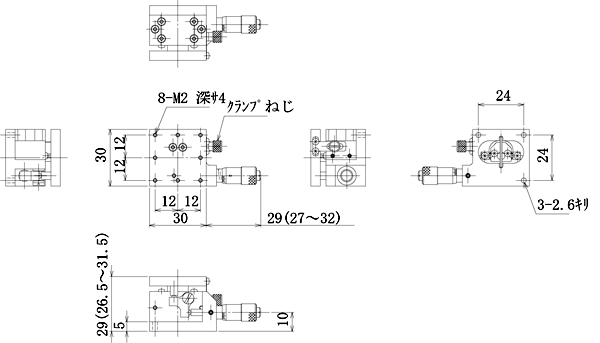

LV-3047-1

1
High-grade Aluminum Z-axis stage 30 x 30
Estimate separately
Travel 0 to 5 mm
Table size 30 mm x 30 mm
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

Small and lightweight Z lift stage.
V-groove and cross rollers (V-CR method) are used for the moving guide.
It is widely used for precision positioning applications such as sensors and workpieces.
▲PAGE TOP

Specifications

Direction of travel Z axis one direction
Table size 30 mm x 30 mm
Clamp method Clamp plate
Transfer mechanism CMH-6.5F (Standard micrometer head)
Travel 0 to 5 mm
Lead of actuator 0.5 mm
Scale interval Micrometer head 0.01 mm
Minimum resolution 0.003 mm
Guiding method V-groove and cross rollers
Travel accuracy Straightness (horizontal and vertical) 0.003 mm
Parallelism 0.1 mm
Load capacity 14.7 N (1.5 kgf)
Weight 0.07 kg
Material / Surface treatment Aluminum alloy/Black Alumite
Standard accessories Inspection certificate
Mounting screw : Hexagon socket head cap screw M2, 4 screws
