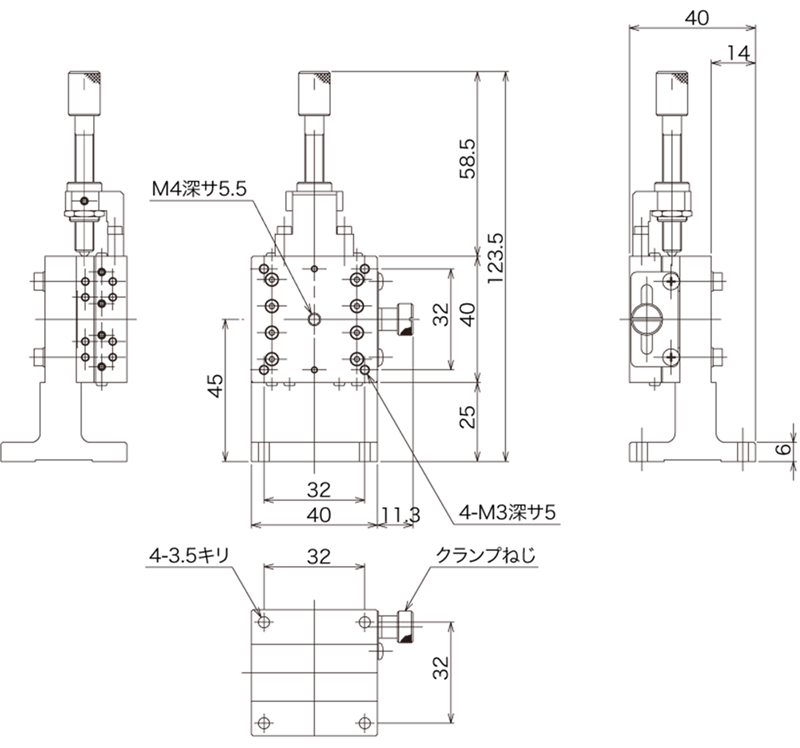

LZ-4047-CR6

1

High-grade aluminum Z axis stage 40 x 40 (Symmetric type)

Estimate separately

Travel	+/-6.5 mm
Table size	40 mm x 40 mm

YES

Product documentation

YES

▲PAGE TOP

Description

Manual stage by using HG-VCR method for the moving guide and aluminum alloy as main material, achieving both rigidity and lightweight.
There are standard types and symmetrical types, and symmetrical configurations are also possible.
Transfer method is feed screw.
It is widely used for precision positioning applications such as cameras, sensors, and workpieces.

▲PAGE TOP

Specifications

Direction of travel	Z axis one direction
Table size	40 mm x 40 mm
Clamp method	Clamp plate
Mounting position	Center
Transfer mechanism	Feed screw P=0.5 mm
Travel	+/-6.5 mm
Lead of actuator	0.5 mm
Scale interval	-
Minimum resolution	0.01 mm
Guiding method	HG-VCR (V-groove and cross rollers)
Travel accuracy HV	Straightness (horizontal and vertical) 0.002 mm
Travel accuracy YP	Yawing 20 sec, Pitching 30 sec
Moment rigidity	Yawing rigidity 0.20 sec/N・cm, Pitching rigidity 0.50 sec/N・cm, Rolling rigidity 0.50 sec/N・cm
Perpendicularity	0.080 mm
Load capacity	19.6 N (2 kgf)
Weight	0.23 kg
Material / Surface treatment	Aluminum alloy/Black Alumite
Standard accessories	Inspection certificate Mounting screw : Hexagon socket head cap screw M3, 4 screws
