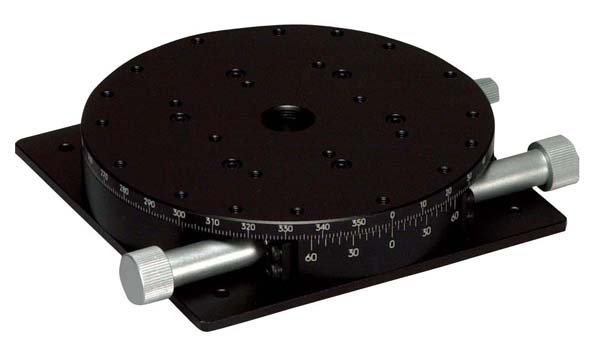

Rotary slim stage, gear type φ125 (Cross roller bearings type)
Estimate separately
Table size φ125 mm
YESRoHS対応状況

Product documentation

Description

Rotary (rotation) stage by using a worm gear for transfer metod.
A sliding guide is used for moving guide, allowing 360 degree fine movement.
It can be fixed with a clamp at any position.
There is a through hole in the center.
It is widely used for precision positioning applications such as cameras, sensors, and workpieces.

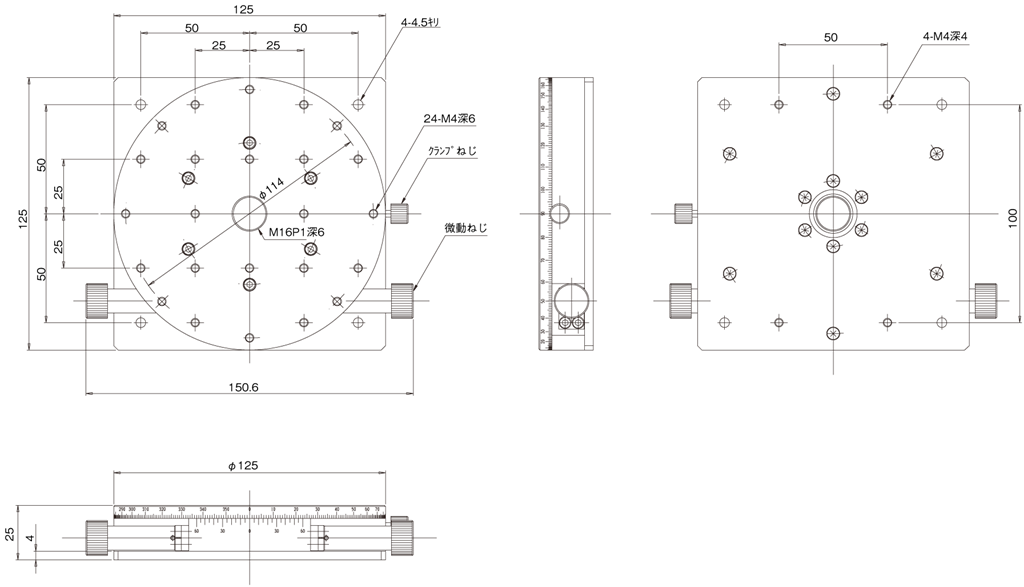

Specifications

Direction of travel Rotation
Table size φ125 mm
Clamp method Screw knob
Mounting position Double coarse handle
Fine feed system Worm gear
Travel 360° (fine)
Lead of actuator Approx. 2.5°
Scale interval Vernier reading 5'
Guiding method V-groove and cross rollers
Parallelism 0.05 mm
Circularity 0.03 mm
Deflection 0.04 mm
Load capacity 147 N (15 kgf)
Weight 1 kg
Material / Surface treatment Aluminum alloy/Black Alumite
Standard accessories Inspection certificate
Mounting screw : Hexagon socket head cap screw M4, 4 screws
