TS-C411

1
Goniometer stage 40 x 40
Estimate separately
Travel +/- 8 °
Table size 40 mm x 40 mm
YESRoHS対応状況

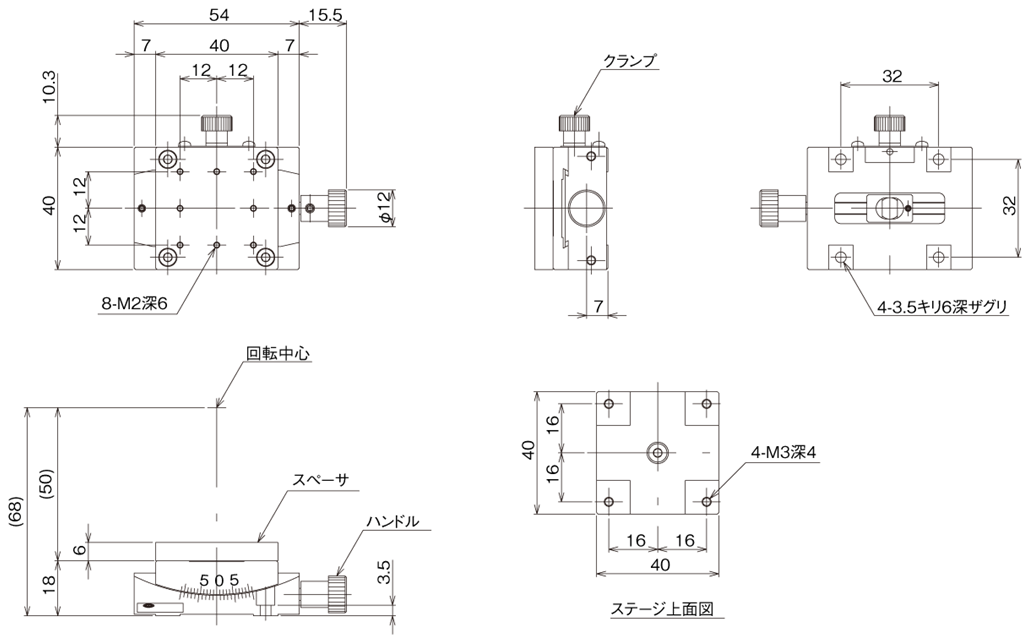

Product documentation

▲PAGE TOP

Description

One-axis tilt stage.
Combine one-axis tilt stages with different rotation center heights to form a two-axis tilt stage with the same rotation center.
Our unique complex coupling mechanism enables fine and extremely smooth movements.
Dovetail groove (D-T method) is used for the moving guide.
It is widely used for positioning applications such as cameras and sensors.
▲PAGE TOP

Specifications

Direction of travel Tilt
Table size 40 mm x 40 mm
Clamp method Clamp plate
Transfer mechanism Precision screw, Composite coupling mechanism swivel
Travel +/- 8 °
Lead of actuator Approx. 28' 11"
Scale interval Vernier reading 6'
Guiding method Dovetail
Center of rotation 50 mm
Positioning accuracy of rotatation center φ0.1 mm
Load capacity 29.4 N (3 kgf)
Weight 0.3 kg
Material / Surface treatment Blass/Black hard chrome
Standard accessories Inspection certificate
Mounting screw : Hexagon socket head cap screw M3, 4 screws
