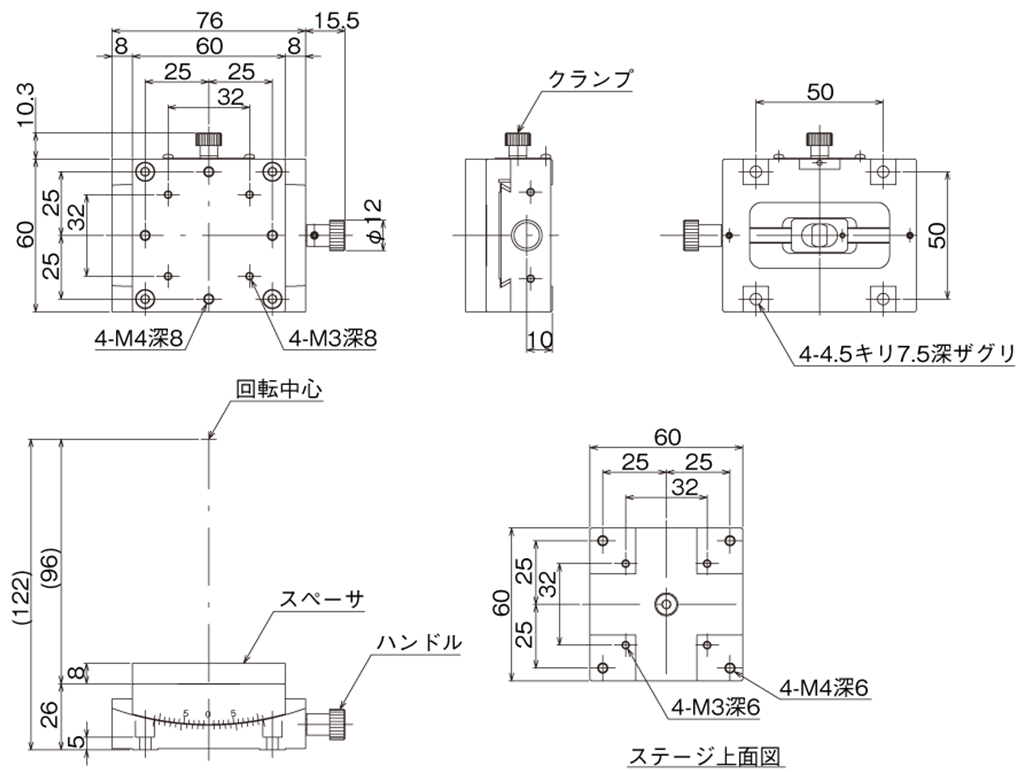

TS-C612

1
Goniometer stage 60 x 60
Estimate separately
Travel +/- 6 °
Table size 60 mm x 60 mm
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

One-axis tilt stage.
Combine one-axis tilt stages with different rotation center heights to form a two-axis tilt stage with the same rotation center.
Our unique complex coupling mechanism enables fine and extremely smooth movements.
Dovetail groove (D-T method) is used for the moving guide.
It is widely used for positioning applications such as cameras and sensors.
▲PAGE TOP

Specifications

Direction of travel Tilt
Table size 60 mm x 60 mm
Clamp method Clamp plate
Transfer mechanism Precision screw, Composite coupling mechanism swivel
Travel +/- 6 °
Lead of actuator Approx. 15' 21"
Scale interval Vernier reading 6'
Guiding method Dovetail
Center of rotation 96 mm
Positioning accuracy of rotatation center φ0.1 mm
Load capacity 49 N (5 kgf)
Weight 0.7 kg
Material / Surface treatment Blass/Black hard chrome
Standard accessories Inspection certificate
Mounting screw : Hexagon socket head cap screw M4, 4 screws
