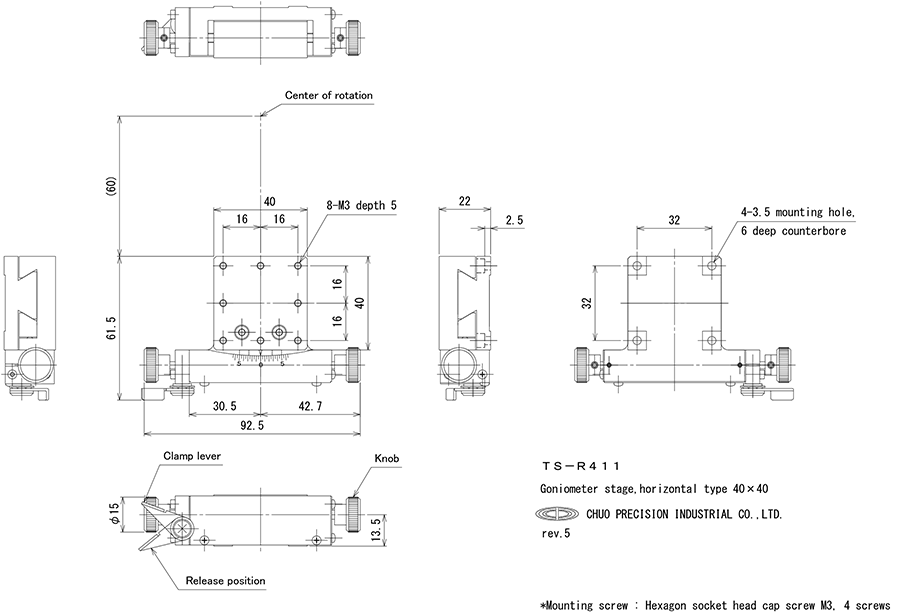

TS-R411

1
Goniometer stage 40 x 40
Estimate separately
Travel +/- 6°
Table size 40 mm x 40 mm
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

One-axis tilt stage.
Our unique complex coupling mechanism enables fine and extremely smooth movements.
Dovetail groove (D-T method) is used for the moving guide.
It is widely used for positioning applications such as cameras and sensors.
▲PAGE TOP

Specifications

Direction of travel Tilt, one axis
Table size 40 mm x 40 mm
Clamp method Lever type
Transfer mechanism Precision screw, Composite coupling mechanism swivel
Travel +/- 6°
Lead of actuator Approx. 16' 8"
Scale interval Scale 30'
Guiding method Dovetail
Center of rotation 80 mm
Positioning accuracy of rotatation center -
Load capacity 19.6 N (2 kgf)
Weight 0.4 kg
Material / Surface treatment Blass/Black hard chrome
Standard accessories Inspection certificate
Mounting screw : Hexagon socket head cap screw M3, 4 screws
