TS-911

1
Goniometer stage 90 x 90
Estimate separately
Travel +/- 12°
Table size 90 mm x 90 mm
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

One-axis tilt stage.
Combine one-axis tilt stages with different rotation center heights to form a two-axis tilt stage with the same rotation center.
Dovetail groove (D-T method) is used for the moving guide.
It is widely used for positioning applications such as cameras and sensors.
▲PAGE TOP

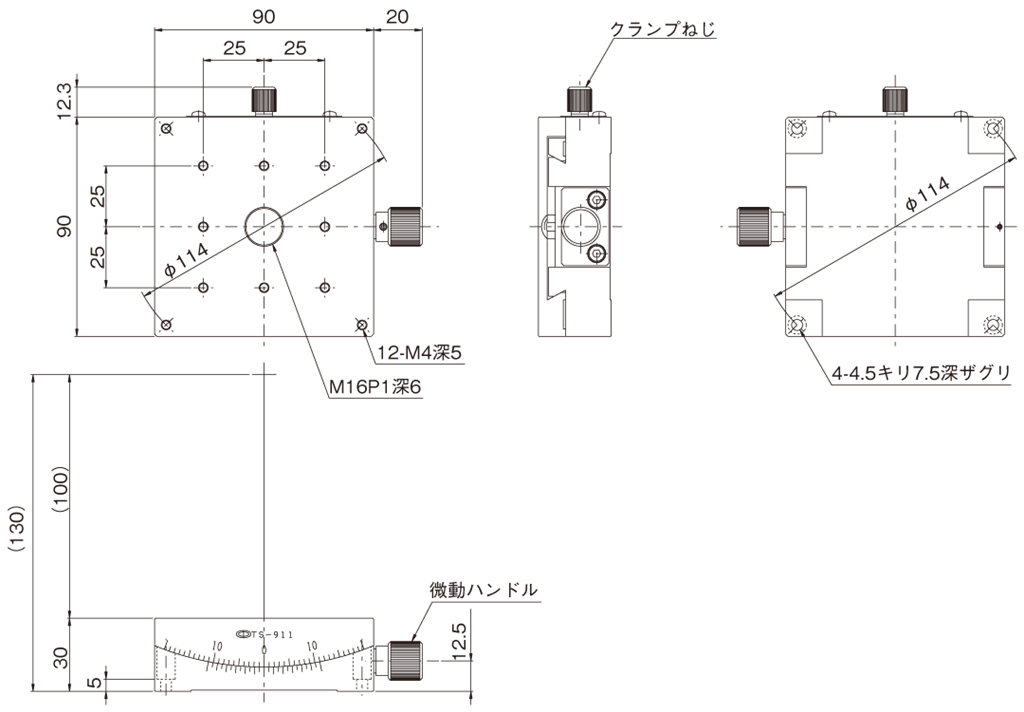

Specifications

Direction of travel Tilt, one axis
Table size 90 mm x 90 mm
Clamp method Clamp plate
Transfer mechanism Worm gear
Travel +/- 12°
Lead of actuator Approx. 1°17' 25"
Scale interval Vernier reading 5'
Guiding method Dovetail
Center of rotation 100 mm
Positioning accuracy of rotatation center φ0.1 mm
Load capacity 78.4 N (8 kgf)
Weight 0.7 kg
Material / Surface treatment Aluminum alloy/Black Alumite
Standard accessories Inspection certificate
Mounting screw : Hexagon socket head cap screw M4, 4 screws
