TD-602C

0

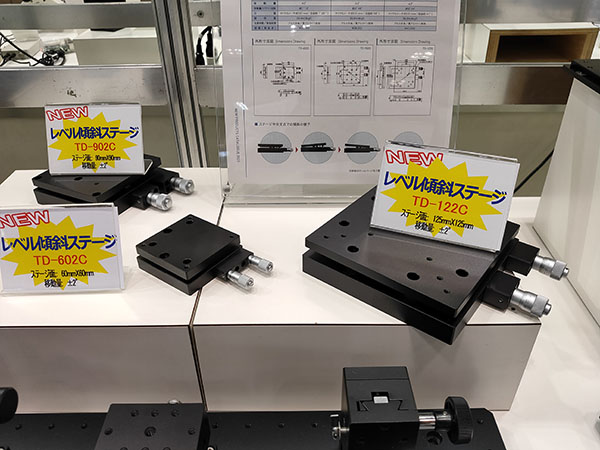

Level tilt stage　60 x 60
Estimate separately
Travel +/- 2°
Table size 60 mm x 60 mm
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

Two-axis tilt stage that can be finely adjusted.
By setting the fulcrum of the tilt at the center of the stage, leveling is now easier.
It is suitable for microscopes, interferometers, etc.
▲PAGE TOP

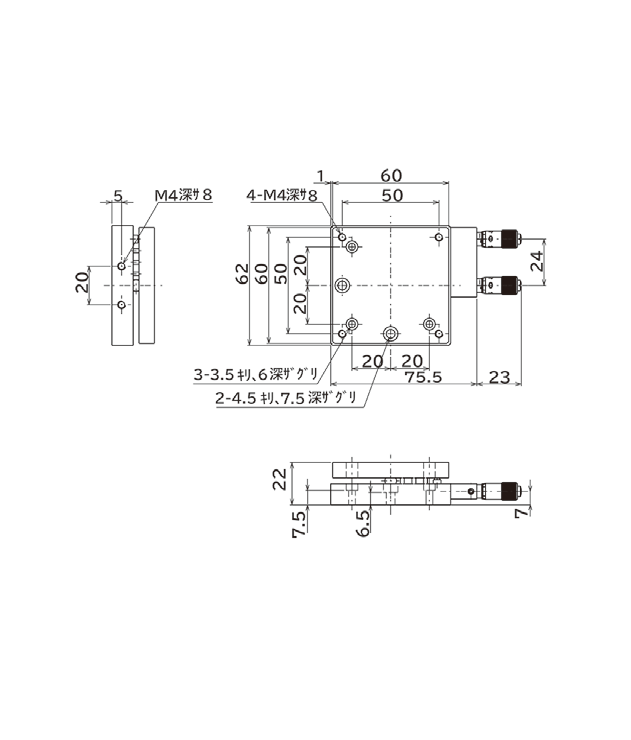

Specifications

Direction of travel Tilt, two axis
Table size 60 mm x 60 mm
Clamp method -
Transfer mechanism CMH-6.5FA (Standard micrometer head)
Travel +/- 2°
Lead of actuator Approx. 1°12'
Scale interval Micrometer head 0.01mm （1 scale approx. 1'26"）
Load capacity 29.4 N (3 kgf)
Material / Surface treatment Aluminum alloy/Black Alumite
