TD-605

1
Tilt and rotary stage 60×60
Estimate separately
Lead of actuator Inclined 1.68°,Rotationapprox 1.64°
Table size 60mm×60mm
YESRoHS対応状況

Product documentation

Description

It is a stage of three roles that can move in two directions of tilting and one direction of rotation.
Clamps are attached to each of the tilt direction and the rotation direction, so fixing at any position is possible.
Good for an application not to change the position frequently such as camera and / or sensor.

Specifications

Direction of travel Tilt, two axis and rotation
Table size 60mm×60mm
Clamp method Clamp facing
Travel Inclined ±3°,Rotation ±3°
Lead of actuator Inclined 1.68°,Rotationapprox 1.64°
Scale interval

Load capacity 19.6N(2kgf)
Weight 0.5kg
Material / Surface treatment Aluminum alloy / Black Alumite
Standard accessories Inspection certificate
Mounting screw : Hexagon socket head cap screw M4, 4 screws

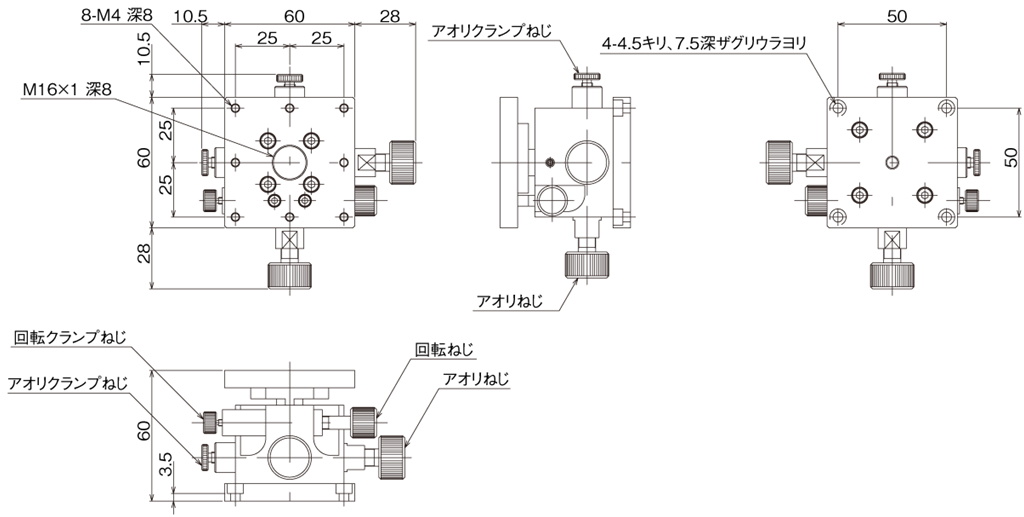

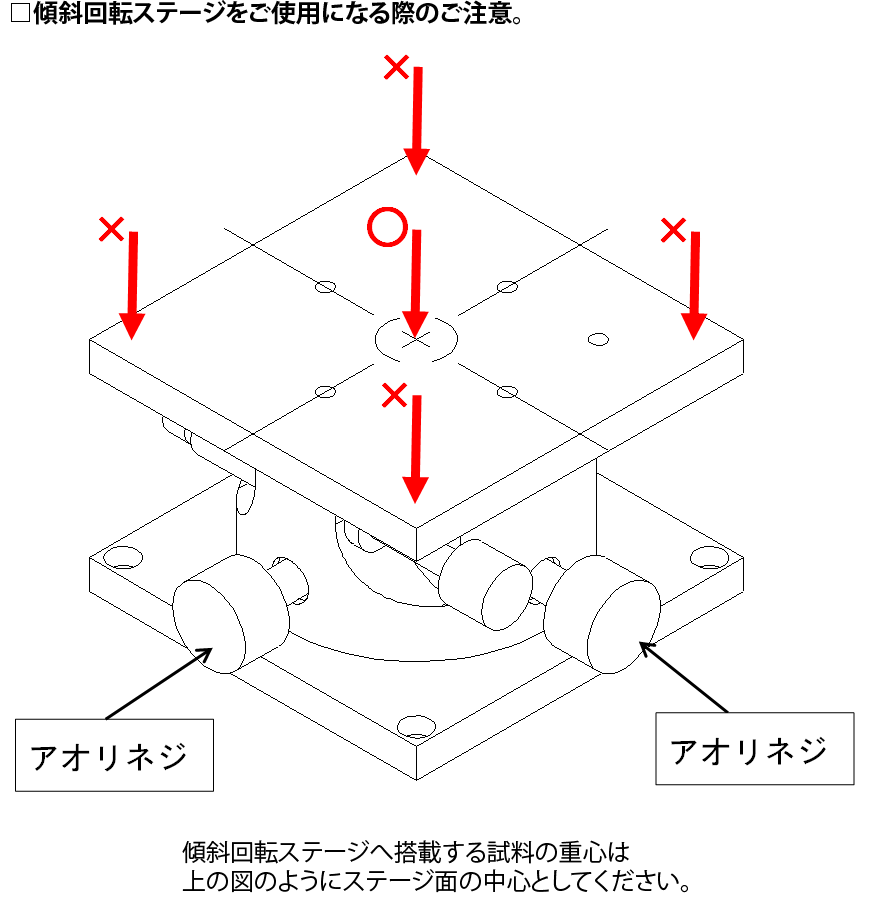

Supplementation
