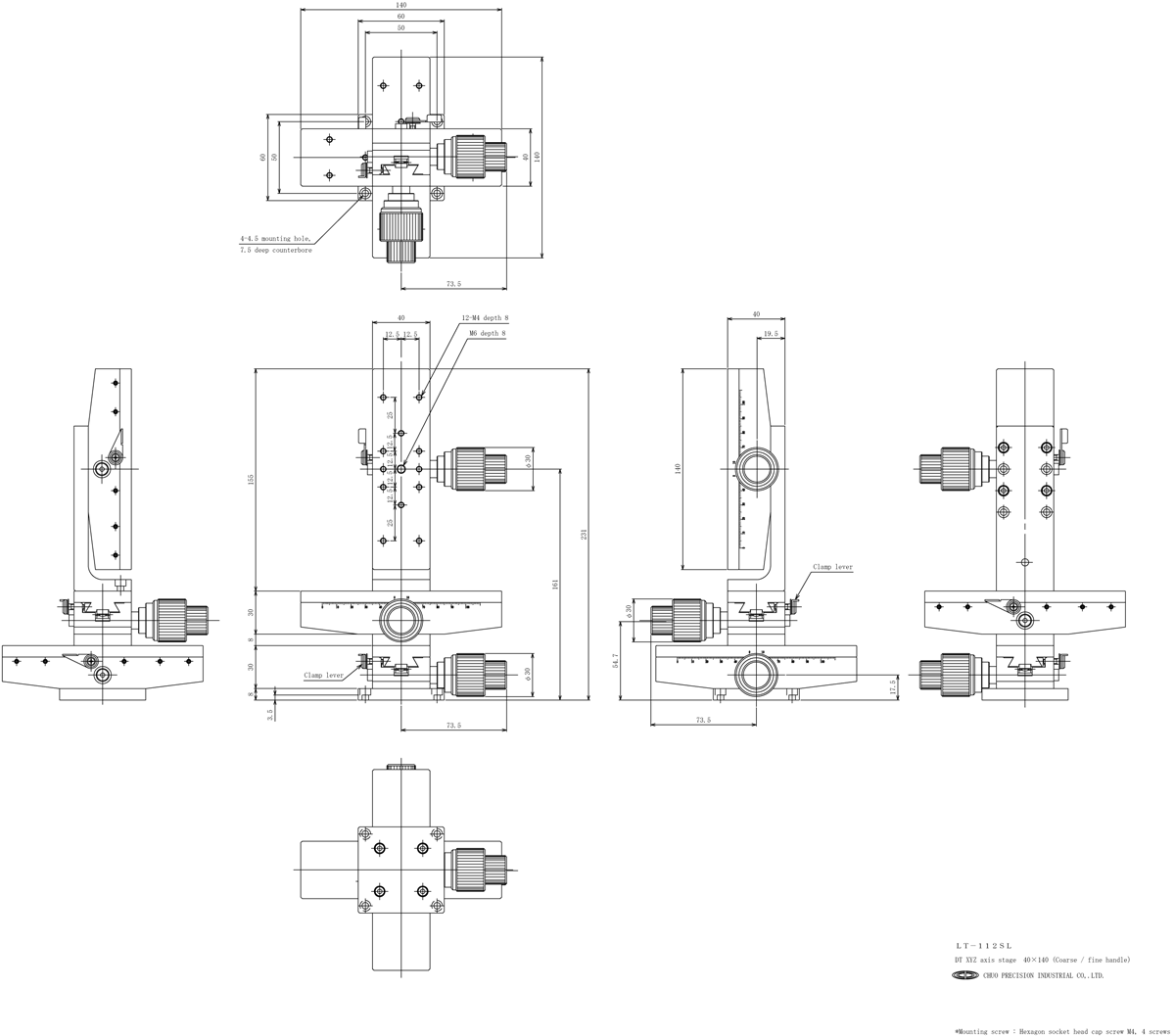

LT-112SL

1

DT XYZ axis stage 40 x 140 (Coarse/fine handle)

Estimate separately

Travel	XY axis +/-50 mm, Z axis 50 mm
Table size	40 mm x 140 mm

YES

Product documentation

YES

▲PAGE TOP

Description

Manual stage by using a dovetail groove (D-T method) for the moving guide.
A rack and pinion is used for the transfer method to achieve a long travel.
It is widely used for positioning applications such as cameras and sensors.
It can be fixed in any position using a lever type clamp with high holding power.
LT-112SL is a short Z bracket model.

▲PAGE TOP

Specifications

Direction of travel	XYZ axis third direction
Table size	40 mm x 140 mm
Clamp method	Lever type
Mounting position	Coarse / fine handle
Transfer mechanism	Rack and Pinion
Travel	XY axis +/-50 mm, Z axis 50 mm
Lead of actuator	Coarse approx. 25.5 mm, fine approx. 3.3 mm
Scale interval	Vernier reading 0.1 mm
Minimum resolution	0.1 mm
Guiding method	Dovetail
Travel accuracy	Straightness 0.03 mm
Load capacity	19.6 N (2 kgf)
Weight	1.88 kg
Material / Surface treatment	Aluminum alloy/Black Alumite
