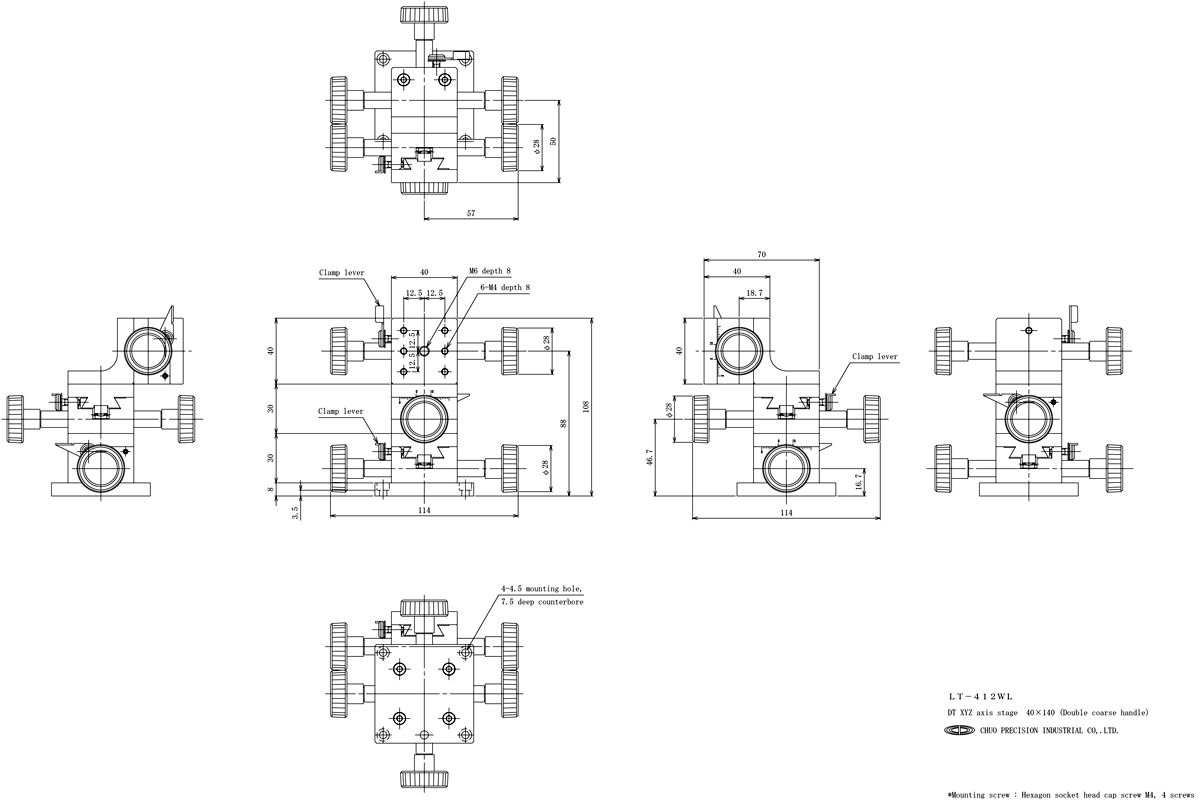

LT-412WL

1

DT XYZ axis stage 40 x 40 (Double coarse handle)

Estimate separately

Travel	XY axis +/-10 mm, Z axis 10 mm
Table size	40 mm x 40 mm

YES

Product documentation

YES

▲PAGE TOP

Description

Manual stage by using a dovetail groove (D-T method) for the moving guide.
A rack and pinion is used for the transfer method to achieve a long travel.
It is widely used for positioning applications such as cameras and sensors.
It can be fixed in any position using a lever type clamp with high holding power.
LT-412WL is a short Z bracket model.

▲PAGE TOP

Specifications

Direction of travel	XYZ axis third direction
Table size	40 mm x 40 mm
Clamp method	Lever type
Mounting position	Double coarse handle
Transfer mechanism	Rack and Pinion
Travel	XY axis +/-10 mm, Z axis 10 mm
Lead of actuator	Approx. 18 mm
Scale interval	Vernier reading 0.1 mm
Minimum resolution	0.1 mm
Guiding method	Dovetail
Travel accuracy	Straightness 0.03 mm
Load capacity	19.6 N (2 kgf)
Weight	0.72 kg
Material / Surface treatment	Aluminum alloy/Black Alumite
