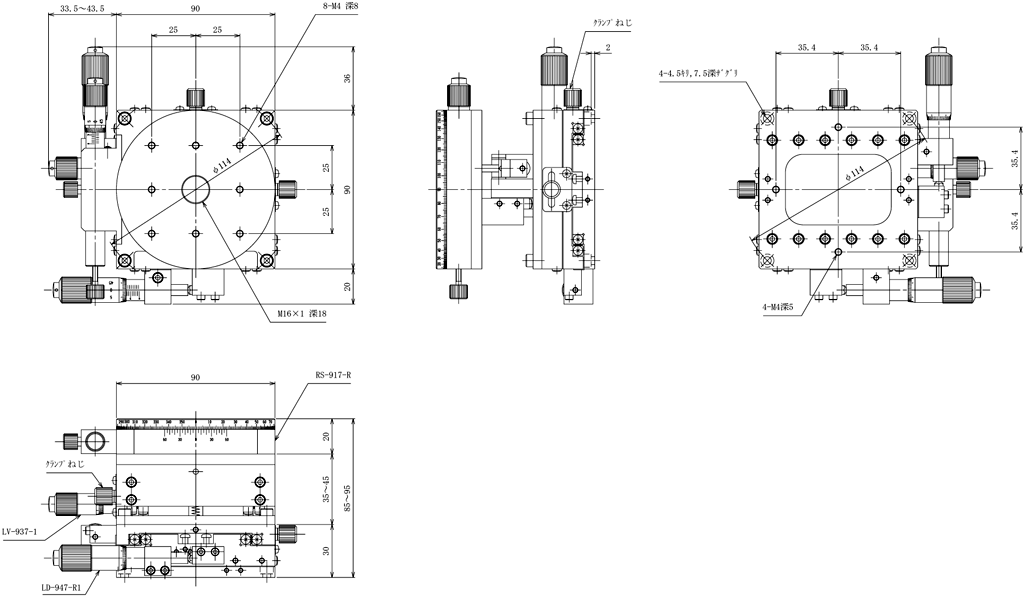

TR-907-R1

1

XYZ-axis Rotary slim stag φ90

Estimate separately

Travel	XY axis +/-7.5 mm, Z axis 0～10 mm, Rotary axis coarse 360°fine +/-5°
Table size	φ90 mm

YES

Product documentation

YES

▲PAGE TOP

Description

A thin and light weight stage by using a V-groove and cross rollers (V-CR method) for moving guide.
Micrometer head position is reverse side of the table.
It is widely used for precision positioning applications such as cameras, sensors, and workpieces.

▲PAGE TOP

Specifications

Direction of travel	XYZ, three axis and rotation
Table size	φ90 mm
Clamp method	XYZ axis clamp plate, rotary axis complex clamp
Mounting position	XY axis reverse side
Transfer mechanism	XY axis MHM1-15A, Z axis CMH-13FM, Rotary axis CEH-13R (each axis standard micrometer head)
Travel	XY axis +/-7.5 mm, Z axis 0～10 mm, Rotary axis coarse 360°fine +/-5°
Lead of actuator	XYZ axis 0.5 mm, Rotary axis approx. 0.50°
Scale interval	XYZ axis 　Micrometer head0.01mm,rotaryaxis　Vernier reading5′／Micrometer head0.01mm（1 division approx0.010°）
Minimum resolution	XYZ axis 0.003 mm
Guiding method	XY axis V-groove and cross rollers, Z axis HG-VCR (V-groove and cross rollers), Rotary axis sliding guide
Travel accuracy	Straightness XY axis 0.003 mm, straightness Z axis 0.008 mm Circularity 0.04 mm, deflection 0.02 mm
Load capacity	29.4 N (3 kgf)
Weight	1.75 kg
Material / Surface treatment	Aluminum alloy/Black Alumite
Standard accessories	Inspection certificate Mounting screw : Hexagon socket head cap screw M4, 4 screws
