Absorption Plates

ZP-2

1
Vacuum pumps(With switch)
Estimate separately
Classification AdsorptionVacuum pumps
YESRoHS対応状況

Product documentation

Description

This is a combination of a small vacuum pump and a suction selector switch.
Adsorption can be turned on and off without depending on the power switch of the vacuum pump.
A suction switch and one 2 m air hose (outer diameter φ6 mm, inner diameter φ4 mm) are included.
*Connect the ON side of the suction selector switch to the vacuum pump with an air hose.
*Please prepare the air hose from the suction switch to the suction destination by yourself.

Specifications

Classification AdsorptionVacuum pumps
Ultimate vacuum -46.6 kPa (-350 mmHg)
Discharge air content 25 L/min.
Power supply AC100V 50/60 Hz 39 W
Outside dimension L190 mm x W122 mm x H174 mm (Vacuum pumps)
Weight 3.7 kg (Vacuum pumps)
Supplemental note Connect the ON side of the suction changeover switch to the vacuum pump.

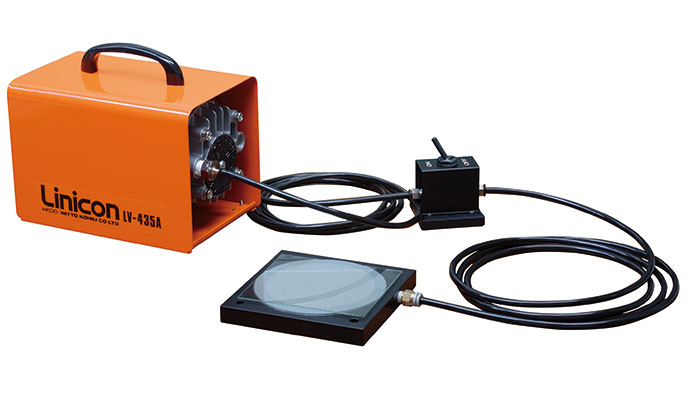

Example of use
