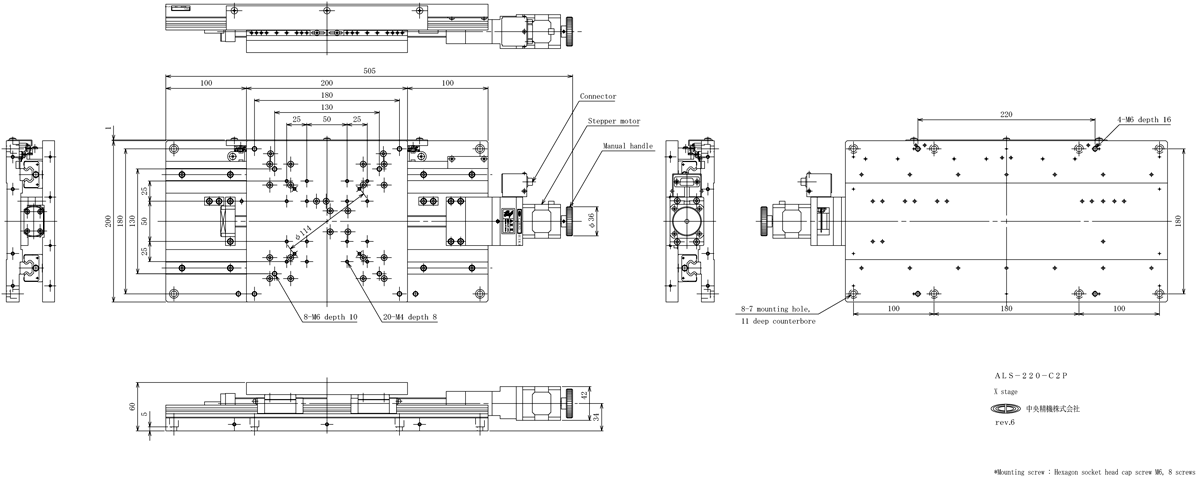

| Direction of travel |
X axis one direction |
| Travel |
+/-100 mm |
| Table size |
200 mm x 200 mm |
| Motor |
Equivalent to PK545NBW (5-wire type pentagonal connection 0.75A/phase) |
| Resolution |
0.004 mm |
| Feed screw |
Ball screw |
| Feed screw lead |
2 mm |
| Guiding method |
Ball way |
| Travel accuracy HV |
Straightness (horizontal and vertical) 0.01 mm |
| Travel accuracy YP |
Yawing 30sec, Pitching 50sec |
| Positioning accuracy |
0.02 mm |
| Repeatability |
+/-0.002 mm |
| Lost motion |
0.002 mm |
| Moment rigidity |
0.02sec/N*cm (Yaw), 0.02sec/N*cm (pitch), 0.02sec/N*cm (roll) |
| Load capacity |
490 N (50 kgf) |
| Weight |
9 kg |
| Maximum speed |
20 mm/s (at 5,000 pps) |
| Material / Surface treatment |
Aluminum alloy/White alumite |
| HOME sensor |
Normally open contact (make contact, A contact) operation, Photo sensor
*non-adjustable |
| Pre-HOME sensor |
Normally closed contact (break contact, B contact) operation, Photo sensor
*adjustable range : +/-100mm |
| LIMIT sensor |
Normally closed contact (break contact, B contact) operation, Photo sensor
*adjustable range : 0 to +/-100mm |
| Compatible cable |
0.75-A type (ACB-STD2, ACB-STD3, ACB-STD-D3, ARC-STD2, ARC-STD-D2, ARC-STD3 or ARC-STD-D3, be sold separately) |
| Standard accessories |
Inspection certificate
Mounting screw : M6 Hexagon socket head cap screws (8 pcs) |
Dedicated parameter setting
(Parameter No.4) |
14 |
