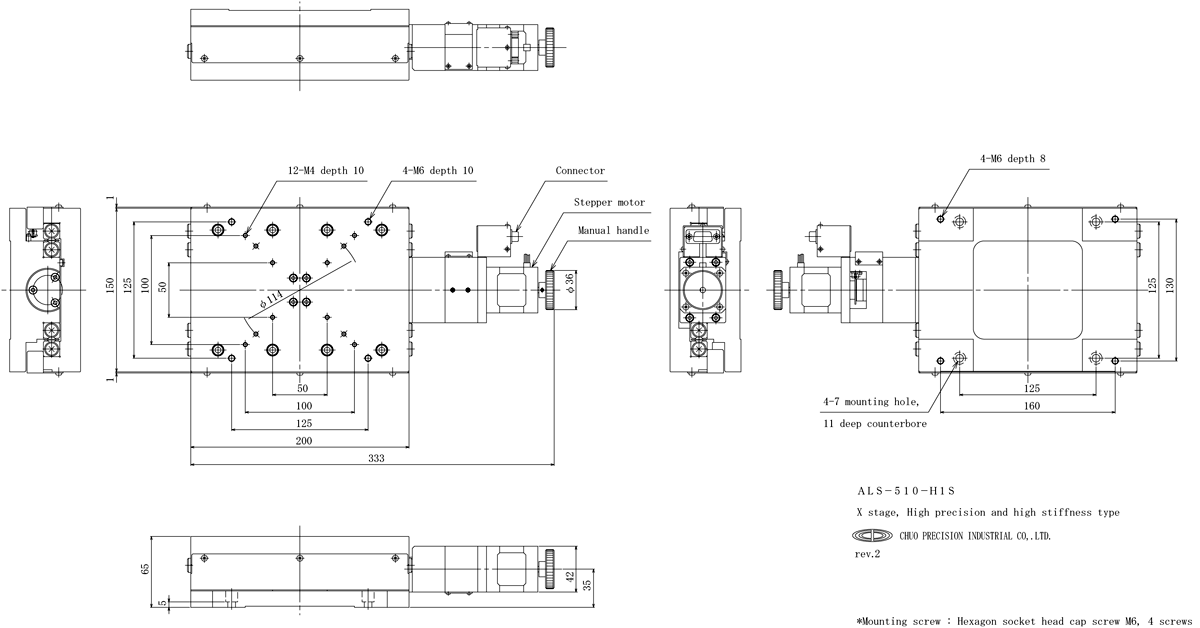

| Direction of travel |
X axis one direction |
| Travel |
+/-50 mm |
| Table size |
150 mm x 200 mm |
| Motor |
Equivalent to PK545NBW (5-wire type pentagonal connection 0.75A/phase) |
| Resolution |
2 μm |
| Feed screw |
Ball screw |
| Feed screw lead |
1 mm |
| Guiding method |
V-groove and Cross roller |
| Travel accuracy HV |
Straightness (horizontal and vertical) 1 μm |
| Travel accuracy YP |
Yawing 6sec, Pitching 6sec |
| Positioning accuracy |
5 μm |
| Repeatability |
+/-0.5 μm |
| Lost motion |
0.5 μm |
| Moment rigidity |
0.01sec/N*cm (Yaw), 0.01sec/N*cm (pitch), 0.01sec/N*cm (roll) |
| Load capacity |
490 N (50 kgf) |
| Weight |
12.8 kg |
| Maximum speed |
16 mm/s (at 8,000 pps) |
| Material / Surface treatment |
Steel/Kanigen plating (table), painting (base) |
| HOME sensor |
Normally open contact (make contact, A contact) operation, Photo sensor
*non-adjustable |
| Pre-HOME sensor |
Normally closed contact (break contact, B contact) operation, Photo sensor
*adjustable range : +/-50mm |
| LIMIT sensor |
Normally closed contact (break contact, B contact) operation, Photo sensor
*adjustable range : 0 to +/-50mm |
| Compatible cable |
0.75-A type (ACB-STD2, ACB-STD3, ACB-STD-D3, ARC-STD2, ARC-STD-D2, ARC-STD3 or ARC-STD-D3, be sold separately) |
| Standard accessories |
Inspection certificate
Mounting screw : M6 Hexagon socket head cap screws (4 pcs) |
Dedicated parameter setting
(Parameter No.4) |
