| Direction of travel |
X axis one direction |
| Travel |
+/-20 mm |
| Table size |
60 mm x 60 mm |
| Motor |
Equivalent to PK543NBW (5-wire type pentagonal connection 0.75A/phase) with electromagnetic brake (5-wire type pentagonal connection 0.75A /phase) |
| Resolution |
0.002 mm |
| Feed screw |
Ball screw |
| Feed screw lead |
1 mm |
| Guiding method |
Ball bushing |
| Travel accuracy HV |
Straightness (horizontal and vertical) 0.015 mm |
| Travel accuracy YP |
- |
| Positioning accuracy |
0.03 mm |
| Repeatability |
+/-0.003 mm |
| Lost motion |
0.01 mm |
| Load capacity |
49 N (5 kgf) |
| Weight |
1.2 kg |
| Maximum speed |
16 mm/s (at 8,000 pps) |
| Material / Surface treatment |
Aluminum alloy/White alumite |

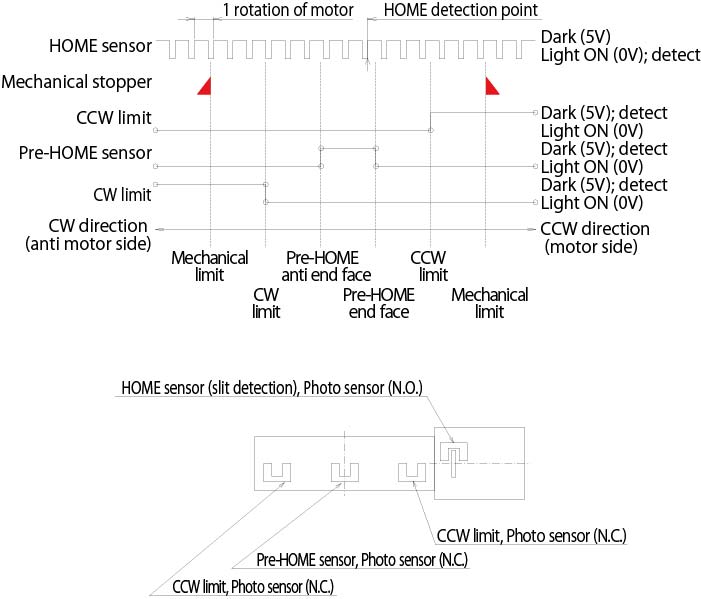

| HOME sensor |
Normally open contact (make contact, A contact) operation, Photo sensor
*non-adjustable |
| Pre-HOME sensor |
Normally closed contact (break contact, B contact) operation, Photo sensor
*adjustable range : +/-20mm |
| LIMIT sensor |
Normally closed contact (break contact, B contact) operation, Photo sensor
*adjustable range : 0 to +/-20mm |

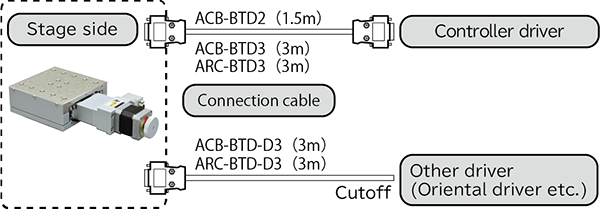

| Compatible cable |
0.75-A type (ACB-STD2, ACB-STD3, ACB-STD-D3, ARC-STD2, ARC-STD-D2, ARC-STD3 or ARC-STD-D3, be sold separately) |
| Standard accessories |
Inspection certificate
Mounting screw : M4 Hexagon socket head cap screws (4 pcs) |
Dedicated parameter setting
(Parameter No.4) |
