| Direction of travel |
XY axis two directions |
| Travel |
+/-7.5 mm |
| Table size |
30 mm x 30 mm |
| Motor |
Equivalent to PK513PB (5-wire type pentagonal connection 0.35A /phase) |
| Resolution |
0.001 mm |
| Feed screw lead |
0.5 mm |
| Guiding method |
V-groove and Cross roller |
| Travel accuracy HV |
Straightness (horizontal and vertical) 0.008 mm |
| Positioning accuracy |
0.015 mm |
| Repeatability |
+/-0.0005 mm |
| Lost motion |
0.005 mm |
| XY Perpendicularity |
0.010 mm |
| Moment rigidity |
- |
| Load capacity |
14.7 N (1.5 kgf) |
| Weight |
0.32 kg |
| Maximum speed |
8 mm/s (at 8,000 pps) |
| Material / Surface treatment |
Aluminum alloy/White alumite |
| HOME sensor |
- |
| Pre-HOME sensor |
- |

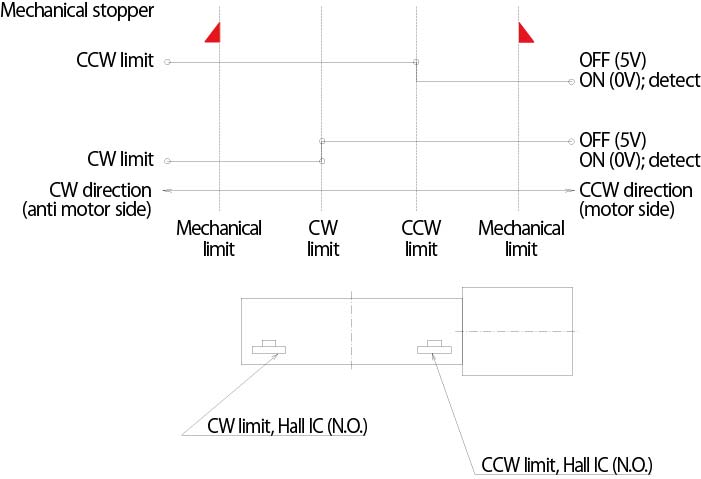

| LIMIT sensor |
Normally open contact (make contact, Ａ contact) operation, Hall IC
*non-adjustable |
| Compatible cable |
ACB-STS2, ACB-STC-D3 (be sold separately) |
| Standard accessories |
Inspection certificate

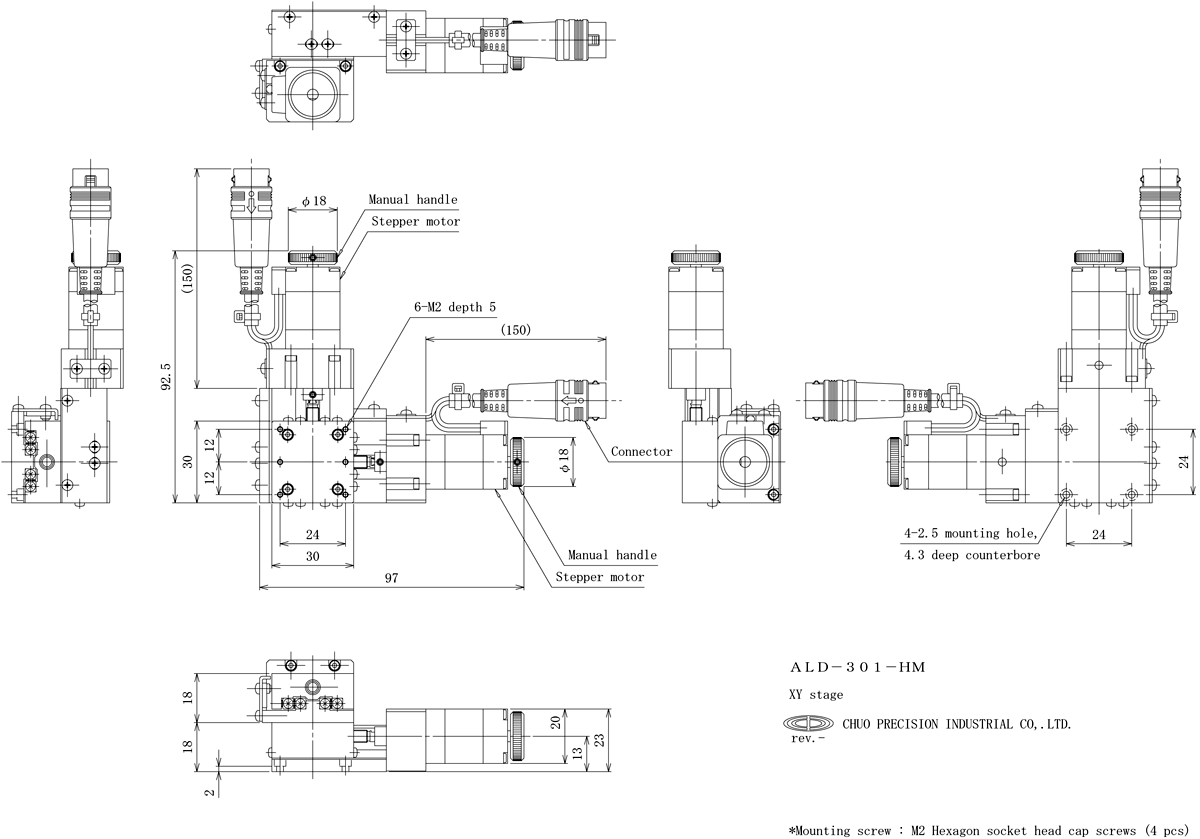

Mounting screw : M2 Hexagon socket head cap screws (4 pcs) |
Dedicated parameter setting
(Parameter No.4) |
