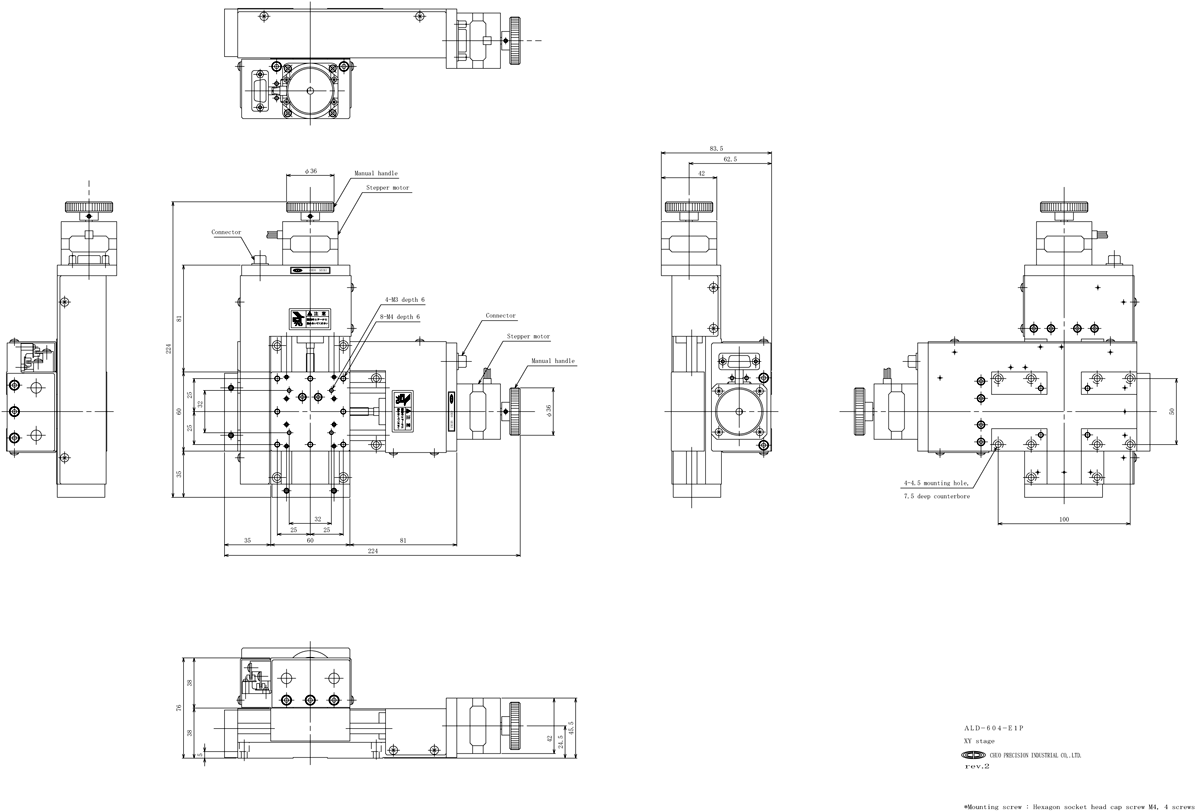

| Direction of travel |
XY axis two directions |
| Travel |
+/-20 mm |
| Table size |
60 mm x 60 mm |
| Motor |
Equivalent to PK543NBW (5-wire type pentagonal connection 0.75A /phase) |
| Resolution |
0.002 mm |
| Feed screw |
Ball screw |
| Feed screw lead |
1 mm |
| Guiding method |
Ball bushing |
| Travel accuracy HV |
Straightness (horizontal and vertical) 0.05 mm |
| Positioning accuracy |
0.05 mm (no load), 0.15 mm (4kg on load) |
| Repeatability |
+/-0.003 mm |
| Lost motion |
0.01 mm |
| XY Perpendicularity |
0.06 mm |
| Moment rigidity |
- |
| Load capacity |
39.2 N (4 kgf) |
| Weight |
2.4 kg |
| Maximum speed |
16 mm/s (at 8,000 pps) |
| Material / Surface treatment |
Aluminum alloy/White alumite |
| HOME sensor |
Normally open contact (make contact, A contact) operation, Photo sensor
*non-adjustable |
| Pre-HOME sensor |
Normally closed contact (break contact, B contact) operation, Photo sensor
*adjustable range : +/-20mm |
| LIMIT sensor |
Normally closed contact (break contact, B contact) operation, Photo sensor
*adjustable range : 0 to +/-20mm |
| Compatible cable |
0.75-A type (ACB-STD2, ACB-STD3, ACB-STD-D3, ARC-STD2, ARC-STD-D2, ARC-STD3 or ARC-STD-D3, be sold separately) |
| Standard accessories |
Inspection certificate
Mounting screw : M4 Hexagon socket head cap screws (4 pcs) |
Dedicated parameter setting
(Parameter No.4) |
14 |
