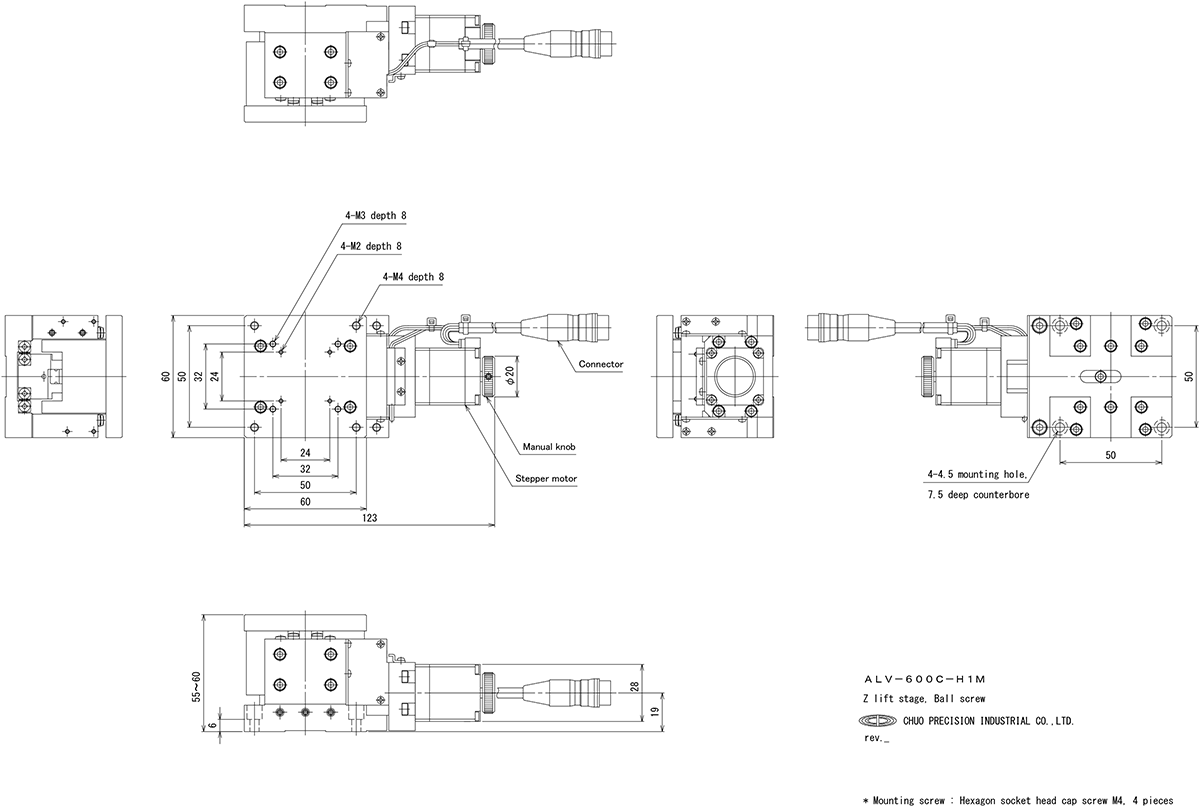

| Direction of travel |
Z axis one direction |
| Travel |
0 to 5 mm |
| Table size |
60 mm x 60 mm |
| Motor |
Equivalent to PK523HPB (5-wire type pentagonal connection 0.75A/phase) |
| Resolution |
0.001 mm |
| Feed screw |
Ball screw |
| Feed screw lead |
1 mm |
| Guiding method |
V-groove and Cross roller |
| Travel accuracy HV |
Straightness (horizontal and vertical) 0.005 mm |
| Positioning accuracy |
0.01 mm |
| Repeatability |
+/-0.001 mm |
| Lost motion |
0.003 mm |
| Load capacity |
29.4 N (3 kgf) |
| Weight |
0.7 kg |
| Maximum speed |
5 mm/s (at 5,000 pps) |
| Material / Surface treatment |
Aluminum alloy/Black Alumite |
| HOME sensor |
Normally closed contact (break contact, B contact) operation, Photo senso
*non-adjustable |
| Pre-HOME sensor |
- |
| LIMIT sensor |
Normally closed contact (break contact, B contact) operation, Photo senso
*non-adjustable |
| Compatible cable |
0.75-B type (ACB-STM2, ACB-STM3, ACB-STM-D3, ARC-STM2, ARC-STM-D2, ARC-STM3 or ARC-STM-D3, be sold separately) |
Dedicated parameter setting
(Parameter No.4) |
36 |
