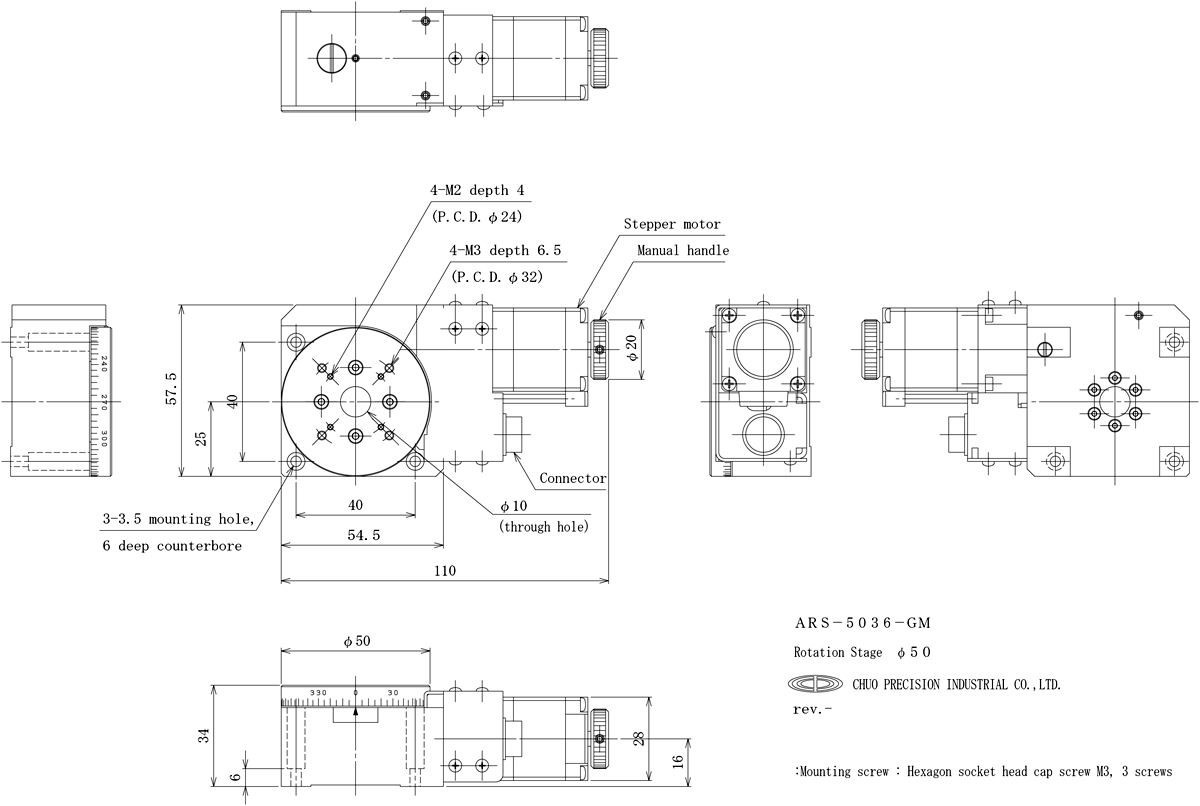

ARS-5036-GM

1

Rotary stage

Estimate separately

Direction of travel	Rotation
Travel	360°
Table size	φ50 mm

YES

Product documentation

YES

▲PAGE TOP

Description

Motorized rotary (rotation) stage with ball bearings guide.
The through hole in the the center can be used as a transmission hole.
It is widely used for precision positioning applications such as cameras, sensors, and workpieces.

▲PAGE TOP

Specifications

Direction of travel	Rotation
Travel	360°
Table size	φ50 mm

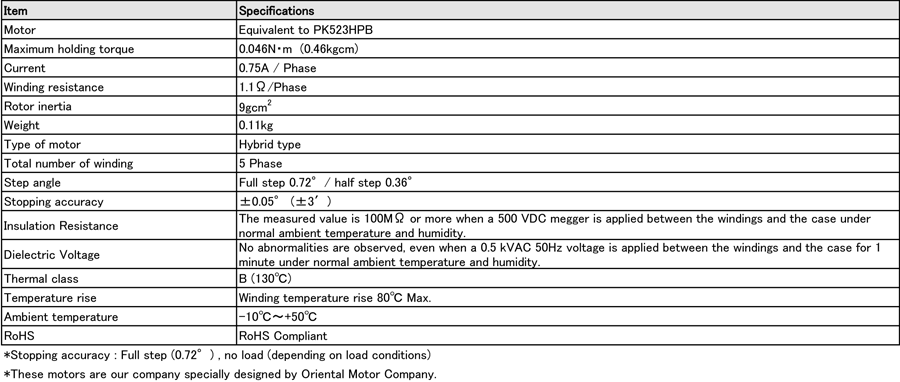

Motor	Equivalent to PK523HPB (5-wire type pentagonal connection 0.75A/phase)
Resolution	0.01°
Guiding method	Ball bearings
Positioning accuracy	0.08°
Repeatability	+/-0.003°
Runout	0.01 mm
Deflection	0.04 mm
Lost motion	0.02°
Parallelism	0.075 mm
Load capacity	29.4 N (3 kgf)
Weight	0.5 kg
Maximum speed	50°/s (at 5,000 pps)
Material / Surface treatment	Aluminum alloy/Black Alumite

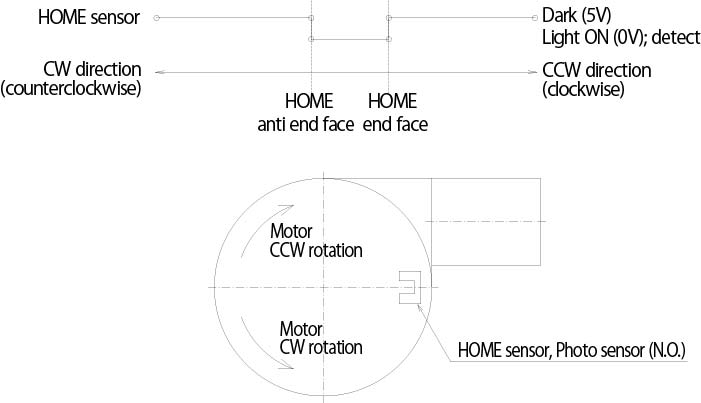

HOME sensor	Normally open contact (make contact, A contact) operation, Photo sensor *non-adjustable
Pre-HOME sensor	-
LIMIT sensor	-

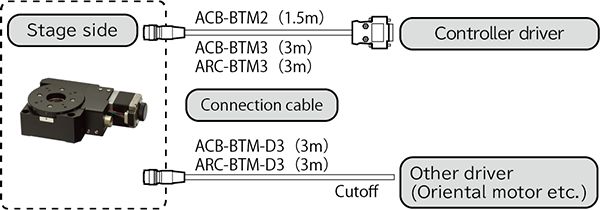

Compatible cable	0.75-B type (ACB-BTM2, ACB-BTM3, ACB-BTM-D3, ARC-BTM3 or ARC-BTM-D3, be sold separately)
Standard accessories	Inspection certificate Mounting screw : M3 Hexagon socket head cap screws (3 pcs)
Dedicated parameter setting (Parameter No.4)	31
