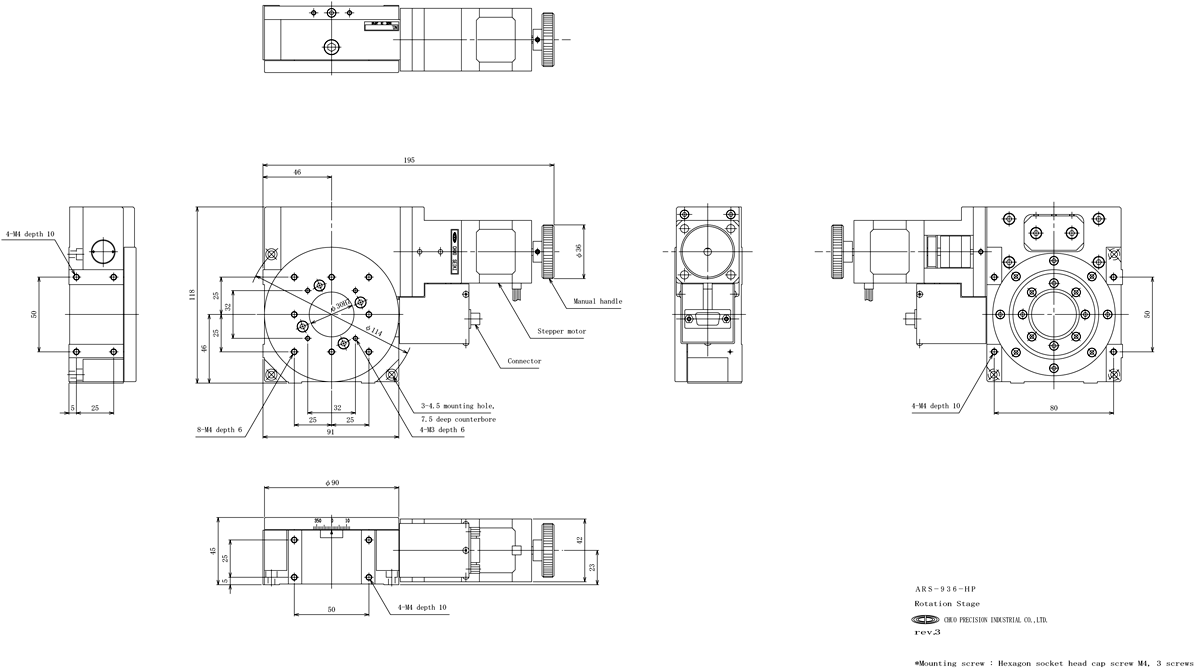

| Direction of travel |
Rotation |
| Travel |
360° |
| Table size |
φ90 mm |
| Motor |
Equivalent to PK545NBW (5-wire type pentagonal connection 0.75A/phase) |
| Resolution |
0.004° |
| Guiding method |
Cross roller bearings |
| Positioning accuracy |
0.025° |
| Repeatability |
+/-0.003° |
| Runout |
0.01 mm |
| Deflection |
0.015 mm |
| Lost motion |
0.003° |
| Parallelism |
0.05 mm |
| Moment rigidity |
0.15 sec/N*cm |
| Load capacity |
98 N (10 kgf) |
| Weight |
2.4 kg |
| Maximum speed |
20°/s (at 5,000 pps) |
| Material / Surface treatment |
Steel/Kanigen plating (table), Aluminum/White Alumite (base) |
| HOME sensor |
Normally open contact (make contact, A contact) operation, Photo sensor
*non-adjustable |
| Pre-HOME sensor |
Normally open contact (make contact, A contact) operation, Photom sensor
*non-adjustable |
| LIMIT sensor |
- |
| Compatible cable |
0.75-A type (ACB-BTD2, ACB-BTD3, ACB-BTD-D3, ARC-BTD3 or ARC-BTD-D3, be sold separately) |
| Standard accessories |
Inspection certificate
Mounting screw : M4 Hexagon socket head cap screws (3 pcs) |
Dedicated parameter setting
(Parameter No.4) |
