Actuators

AMS-15B

0
Auto micro (For Stepper motor）
Estimate separately
Travel 0 to 15 mm
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

This is an automatic (motorized) actuator that uses a 5-phase stepper motor.
It is extremely powerful with a thrust of 10 kgｆ.
Equipped with a reduction ratio of 1:50, it has extremely high resolution.
Equipped as standard with a limit sensor that can also be used as the origin.
▲PAGE TOP

Specifications

Travel 0 to 15 mm
Motor Equivalent to PK513PB (5-wire type pentagon connection) 0.35A/phase）
Thrust 98 N (10 kgf)
Resolution 0.00002 mm
Feed screw lead 0.5 mm
Positioning accuracy 0.01 mm
Repeatability ±0.003 mm
Reduction gears Speed reduction 1：50
Mounting diameter φ9.5 0-0.009 mm
Weight 0.25 kg
Maximum speed 0.3 mm/s （at 15,000 pps）
Material / Surface treatment Steel material/Black chromium
HOME sensor －
Pre-HOME sensor －
LIMIT sensor Normally closed contact (break contact, B contact) operation, Photo sensor
*non-adjustable
Cable length Approx. 1.5m
▲PAGE TOP

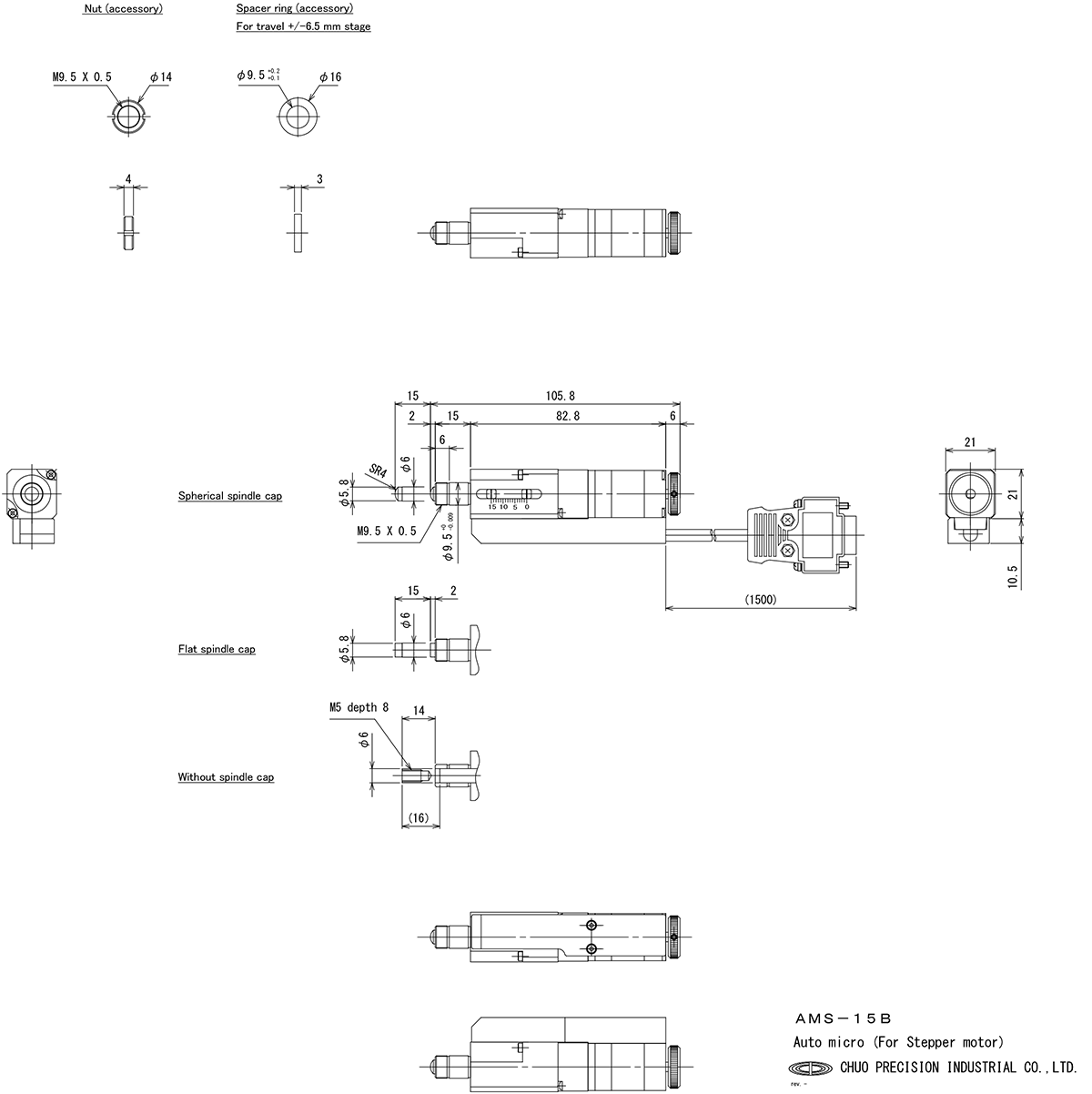

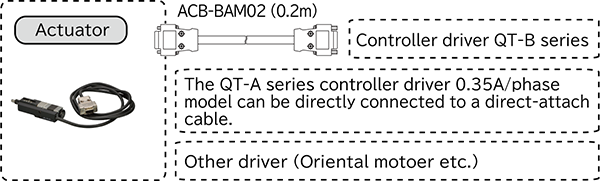

Connection method - Cable, Controller and Driver -

Operating principle of the Sensor and Timing Chart
