Driver Units

QTD-CRD5103P

1
Driver unit
Estimate separately
Number of controlled axes 1 axis
YESRoHS対応状況
QTD-CRD5103P

Product documentation

▲PAGE TOP

Description

This is a driver unit for stepping motors. In embedded applications, such as equipment, for example, if your controller is available separately, please select.
※ If you wish, please download it from the home page of the manual Oriental Motor.
Oriental Motor's Model will be except the Model QTD-which is our control.
If the QTD-RKD507M-A cases, RKD507M-A will be the type of company Oriental Motor.
▲PAGE TOP

Specifications

Number of controlled axes 1 axis
Driver unit outline Oriental Motor made by
micro-step driver
CRD5103P
Input power source DC24V±10％,0.7A
Compatible moter PK513PB
Type Drivers usually
Rated current Phase 0.75A
Basic step angle 0.72°
Number of partitions 1～1/250
Signal input Photo coupler
Ambient Temperature and humidity 0～＋40℃

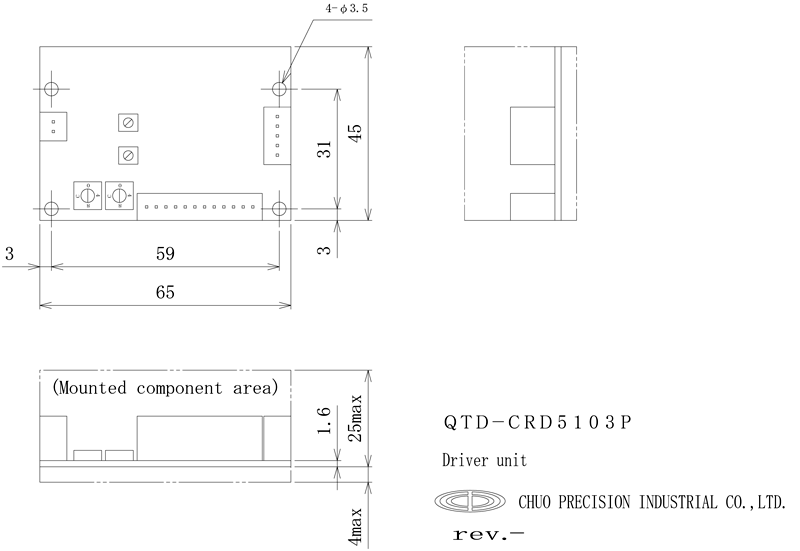

Outside dimension W65mm×D45mm×H25mm
Weight 0.04kg
Connecting connector Accessories
Applicable motor Equivalent PK513PB
Supplemental note ※The content of the connector is supplied with housing and contacts. We offer a connection cable, please connect with the connector.
▲PAGE TOP

Connection method - Cable, Controller and Driver -

Specification
