Mirror Holders

MHJ-50

1
Upper control gimbal mirror holder φ50
Estimate separately
Classification Upper control gimbal mirror holder
Shape conforming element φ50mm
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

This is two control screw gimbal mirror holder for circular mirror. Mirror holder whiose center of rotation is made to coincide with the mirror center by a gimbal mechanism.
▲PAGE TOP

Specifications

Classification Upper control gimbal mirror holder
Shape conforming element φ50mm
Thickness conforming element 2mm to 13mm
Clear Aperture(mm) φ46mm
The tilt screw Resource M6P0.25
Adjustable range ±3°
Mounting shaft(mm) 12mm diameter, 60mm length
Weight 0.48kg
▲PAGE TOP

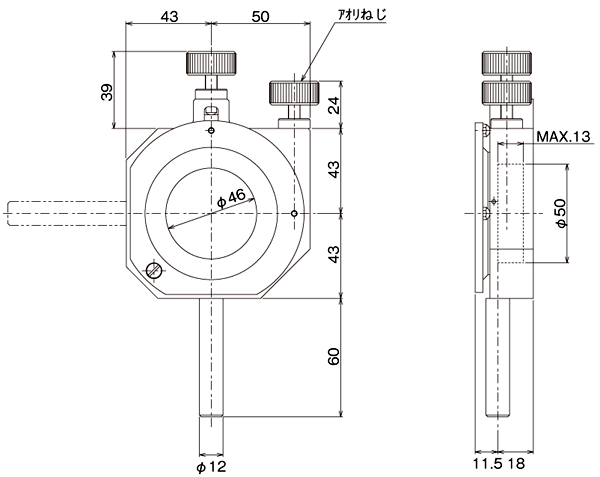

Specification drawings(or pictures)
