Mirror Holders

MHJ-100

1
Upper control gimbal mirror holder φ100
Estimate separately
Classification Upper control gimbal mirror holder
Shape conforming element φ100mm

Product documentation

  • カタログPDF
  • 図面PDF
  • 図面DXF
  • 技術資料
▲PAGE TOP

Description

This is two control screw gimbal mirror holder for circular mirror. Mirror holder whiose center of rotation is made to coincide with the mirror center by a gimbal mechanism.
▲PAGE TOP

Specifications

Classification Upper control gimbal mirror holder
Shape conforming element φ100mm
Thickness conforming element 2mm to 15mm
Clear Aperture(mm) φ94mm
The tilt screw Resource M8P0.5
Adjustable range ±3°
Mounting shaft(mm) 20mm diameter, 60mm length
Weight 1.0kg
▲PAGE TOP

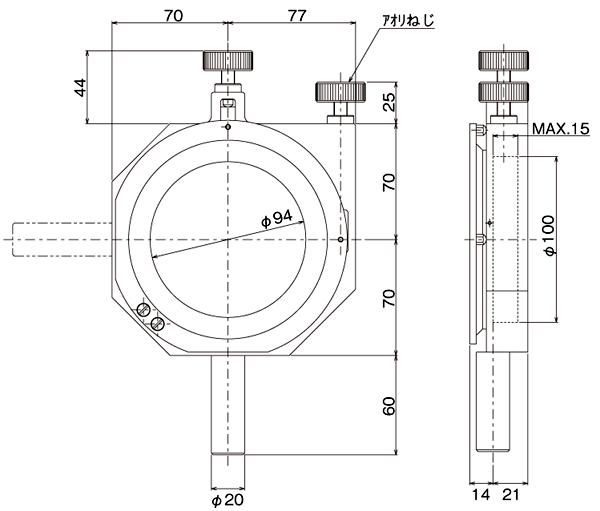

Specification drawings(or pictures)
