Lens Holders

C-28-15

1
Lens holder φ15
Estimate separately
Classification Standard Lens holder
Shape conforming element φ15mm
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

This is lens holder for circular lens or mirror.
▲PAGE TOP

Specifications

Classification Standard Lens holder
Shape conforming element φ15mm
Thickness conforming element 6mm
Method of fixation Using fitting ring
Clear Aperture(mm) φ13
Optical axis height(mm) 16.5
Mounting shaft(mm) 12mm diameter, 60mm length
Weight 0.08kg
▲PAGE TOP

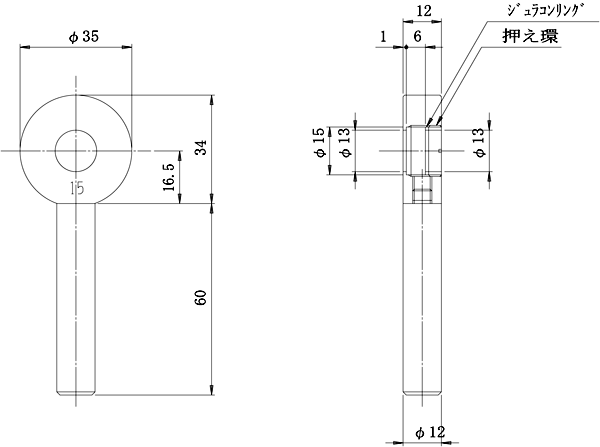

Specification drawings(or pictures)
