Lens Holders

C-28-25

1
Lens holder φ25
Estimate separately
Classification Standard Lens holder
Shape conforming element φ25mm
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

This is lens holder for circular lens or mirror.
▲PAGE TOP

Specifications

Classification Standard Lens holder
Shape conforming element φ25mm
Thickness conforming element 12mm
Method of fixation Using fitting ring
Clear Aperture(mm) φ23
Optical axis height(mm) 21.5
Mounting shaft(mm) 12mm diameter, 60mm length
Weight 0.11kg
▲PAGE TOP

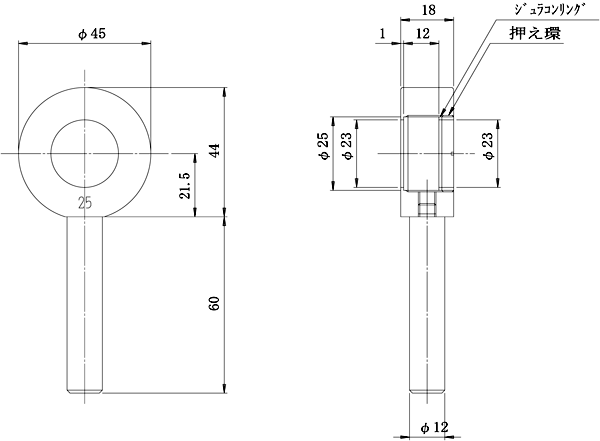

Specification drawings(or pictures)
