Two-axis Pinholes / Objective Holders
Two-axis Pinholes / Objective Holders
C-53-(3)
1
Tilting mechanical holder
Estimate separately
Product documentation
▲PAGE TOP
Description
This is precise mechanical holder for pinhole, lens and optical fiber. Two axes and two tilting fine adjustment is available.
▲PAGE TOP
Specifications
Specification
Aperture：7mm diameter, □24mm4-M2 tap
Travel
±1mm
Travel accuracy
Straightness：0.04mm
Mounting shaft(mm)
12mm diameter, 60mm length with taper
Weight
0.13kg
▲PAGE TOP

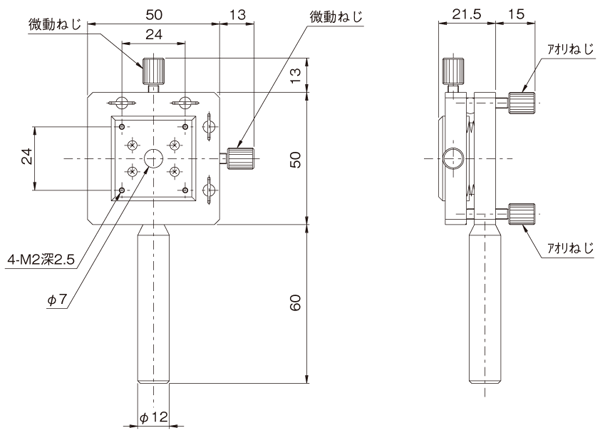

Specification drawings(or pictures)
