Tool Scope type IL

TV-ILC-3

1
Tool Scope Type IL
Estimate separately
Microscope tube Straight tube with C mount and built-in LED illumination
Objective OB-3

Product documentation

  • カタログPDF

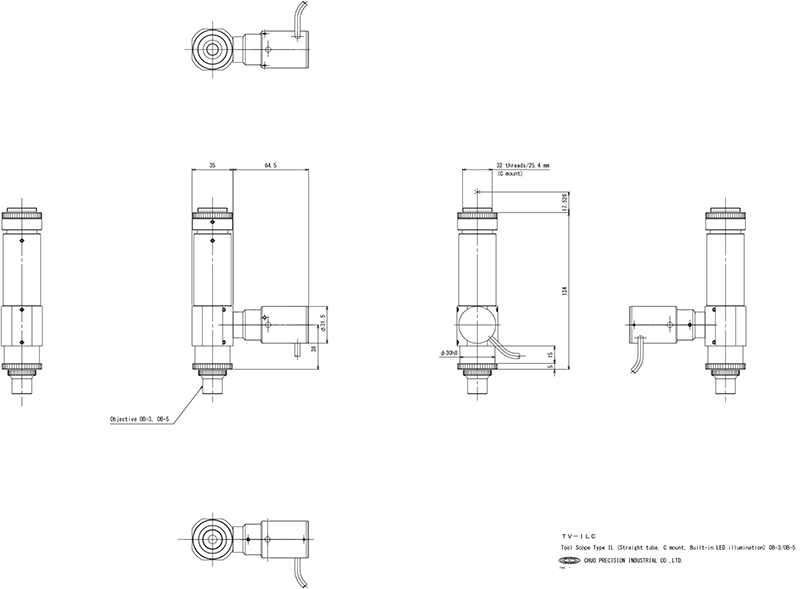

  • 図面PDF
  • 図面DXF
  • 技術資料
▲PAGE TOP

Description

TV-ILC type is a Tool Scope equipped with a white LED light source.
Using the C-mount, you can display the observed image on a TV monitor.
We will assemble the objective lens before shipping.
Combinations such as without objective lens are also possible. Please contact us.
ツールスコープ is the registered trademark of Chuo Precision Industrial Co.,Ltd. in Japan.Tool Scope is the trademark of Chuo Precision Industrial Co.,Ltd.
▲PAGE TOP

Specifications

Microscope tube Straight tube with C mount and built-in LED illumination
Mechanical tube length 163 mm
Objective OB-3
Working distance(W.D.) 34 mm
Light source White LED, cable length 1.8m
Power supply Dedicated illuminator TS-EP2A with AC adapter ( input AC100 to 240V 50/60Hz), cable length 1.5 m
C mount 32 threads/25.4 mm, Flange focal length is 17.526 mm
Weight Microscope tube 0.6 kg, LED power supply 0.5kg, AC adapter 0.1 kg
▲PAGE TOP

Table of magnification

▲PAGE TOP

Reticle

▲PAGE TOP

Option

▲PAGE TOP
