Tool Scope type WL -CHUO PRECISION INDUSTRIAL CO.,LTD.-

TS-WLC-3-10-4

1

Tool Scope Type WL

Estimate separately

Microscope tube	Tilt angle: 45 degrees with C mount and built-in LED illuminator
Objective	OB-3
Eyepiece	OC-10

Product documentation

▲PAGE TOP

Description

TS-WLC type is a Tool Scope equipped with a white LED light source.
The observation image can be displayed on the TV monitor at the same time as observation through the eyepiece. (Please purchase C-mount camera, TV monitor, etc. separately.)
We will assemble the objective lens, eyepiece, and reticle before shipping.
Combinations such as without objective lens, without eyepiece, and without reticle are also possible. Please contact us.
ツールスコープ is the registered trademark of Chuo Precision Industrial Co.,Ltd. in Japan.Tool Scope is the trademark of Chuo Precision Industrial Co.,Ltd.

▲PAGE TOP

Specifications

Microscope tube	Tilt angle: 45 degrees with C mount and built-in LED illuminator
Mechanical tube length	163 mm
Objective	OB-3
Eyepiece	OC-10

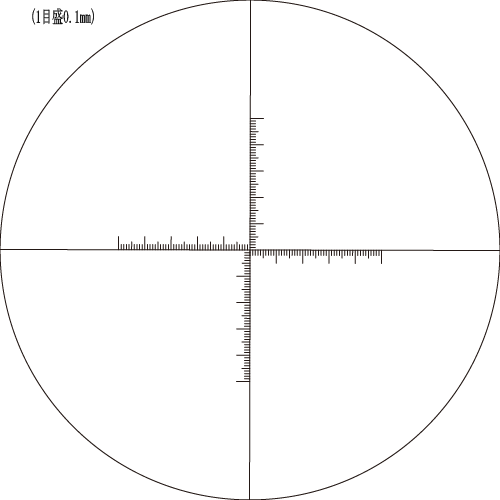

Reticles	Crossed micrometer
Total magnification	30x
Working distance(W.D.)	34 mm
Field of view	φ6 mm
Light source	White LED, cable length 1.8 m
Power supply	Dedicated illuminator TS-EP2A with AC adapter, cable length 1.5 m
C mount	32 threads/25.4 mm, Flange focal length is 17.526 mm
Weight	Microscope tube 0.6 kg, LED power supply 0.5 kg, AC adapter 0.1 kg
