Objective Lens

OB-1

1
Objective lens 1x
Estimate separately
Magnification 1x
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

OB or LWD type is an objective lens for the Tool Scope.

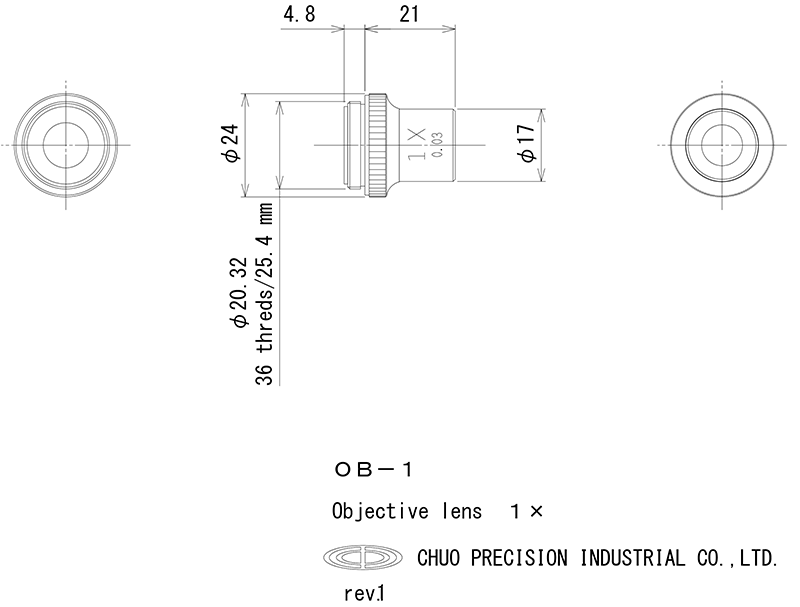

The mounting screw is 36 threads/inch φ20.32 (JIS B 7141).
ツールスコープ is the registered trademark of Chuo Precision Industrial Co.,Ltd. in Japan.Tool Scope is the trademark of Chuo Precision Industrial Co.,Ltd.
▲PAGE TOP

Specifications

Magnification 1x
N.A. 0.03
Focal Length 84.1 mm
Resolution 12.47 μm (Calculated value)
Supplemental note Working distance (W.D.) : 167 mm
* When using an objective lens in a Tool Scope.
