Objective Lens

OB-2

1
Objective lens 2x
Estimate separately
Magnification 2x
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

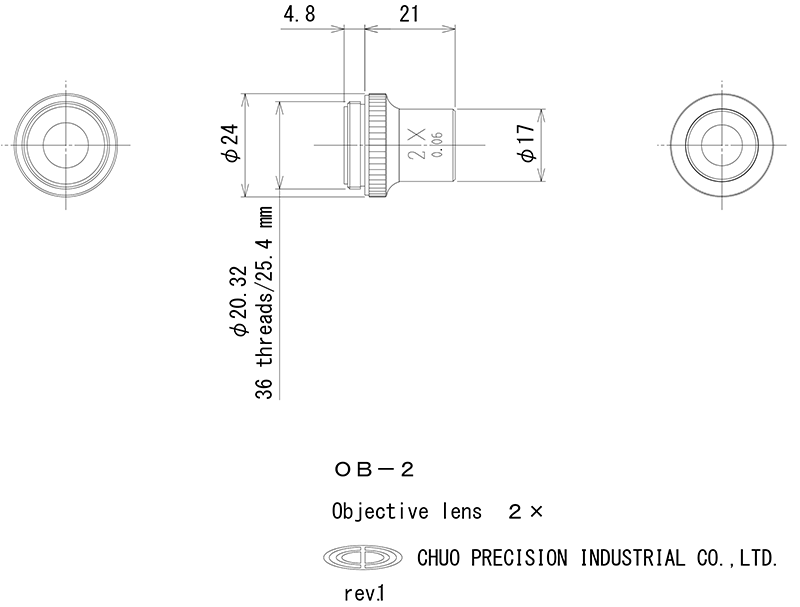

OB or LWD type is an objective lens for the Tool Scope.
The mounting screw is 36 threads/inch φ20.32 (JIS B 7141).
ツールスコープ is the registered trademark of Chuo Precision Industrial Co.,Ltd. in Japan.Tool Scope is the trademark of Chuo Precision Industrial Co.,Ltd.
▲PAGE TOP

Specifications

Magnification 2x
N.A. 0.06
Focal Length 53.9 mm
Resolution 5.95 μm (Calculated value)
Supplemental note Working distance (W.D.) : 71.5 mm
* When using an objective lens in a Tool Scope.
