Objective Lens

OB-5

1
Objective lens 5x
Estimate separately
Magnification 5x
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

OB or LWD type is an objective lens for the Tool Scope.

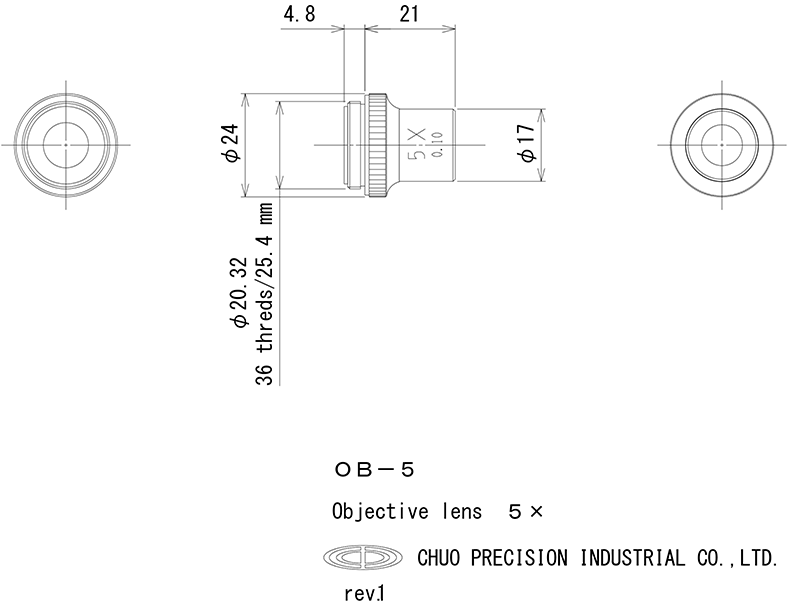

The mounting screw is 36 threads/inch φ20.32 (JIS B 7141).
ツールスコープ is the registered trademark of Chuo Precision Industrial Co.,Ltd. in Japan.Tool Scope is the trademark of Chuo Precision Industrial Co.,Ltd.
▲PAGE TOP

Specifications

Magnification 5x
N.A. 0.1
Focal Length 25.4 mm
Resolution 3.05 μm (Calculated value)
Supplemental note Working distance (W.D.) : 13 mm
* When using an objective lens in a Tool Scope.
