TV Adapter

TS-TVA-8

1
TV adapter with crossed micrometer reticle3
Estimate separately
Type of reticle Crossed micrometer3
YESRoHS対応状況

Product documentation

Description

TS-TVA type is an adapter that allows you to easily attach a TV camera to the Tool Scope.
Remove the eyepiece, insert the TS-TVA, and attach the C-mount TV camera.
At the same time, the reticle can also be displayed.
We will assemble the reticle before shipping.
ツールスコープ is the registered trademark of Chuo Precision Industrial Co.,Ltd. in Japan.Tool Scope is the trademark of Chuo Precision Industrial Co.,Ltd.

Specifications

C mount 32 threads/25.4 mm, Flange focal length 17.526 mm
Type of reticle Crossed micrometer3
Weight 0.06kg

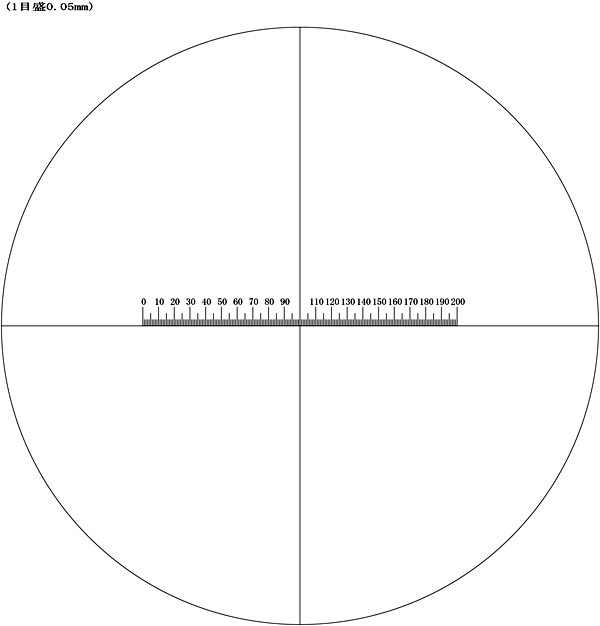

Reticle
