Stand

TS-LH-L240

1
Stand type H
Estimate separately
Direction of travel 1 direction
Travel 20 mm
YESRoHS対応状況

Product documentation

Description

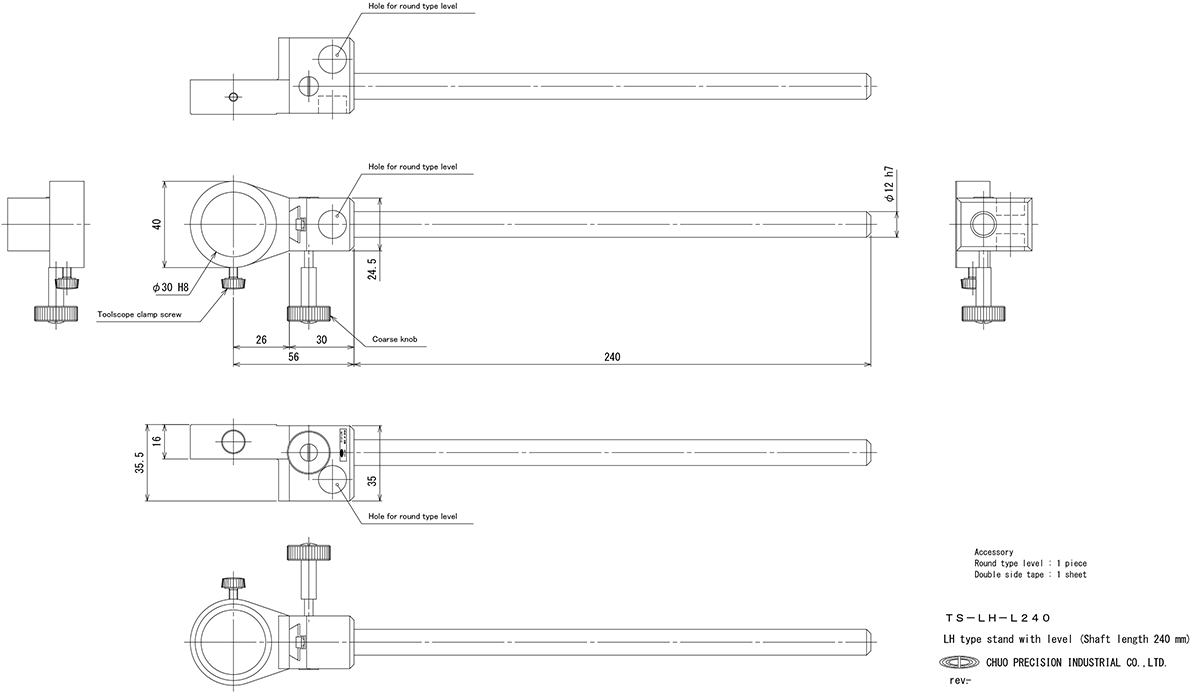

TS-LH-L240 is a stand that allows you to attach and align the Tool Scope.
As a stand function,it can only move in one direction (focusing direction).
A level (round type level) is included, which is useful for aligning the optical axis horizontally when using a long working distance objective lens.
There are 3 mounting points for the level (round level): on the top, on the left and right sides.
Since double-sided tape is included, the level (round level) can be fixed in a horizontal or vertical position to the optical axis.
Pole length 240 mm.
Equipped with a microscope tube holder φ30H8 that can fix the Tool Scope.
ツールスコープ is the registered trademark of Chuo Precision Industrial Co.,Ltd. in Japan.Tool Scope is the trademark of Chuo Precision Industrial Co.,Ltd.

Specifications

Direction of travel 1 direction
Travel 20 mm
Weight 0.6 kg

Examples of applications
