Centering Microscope

TS-FLA-32

1

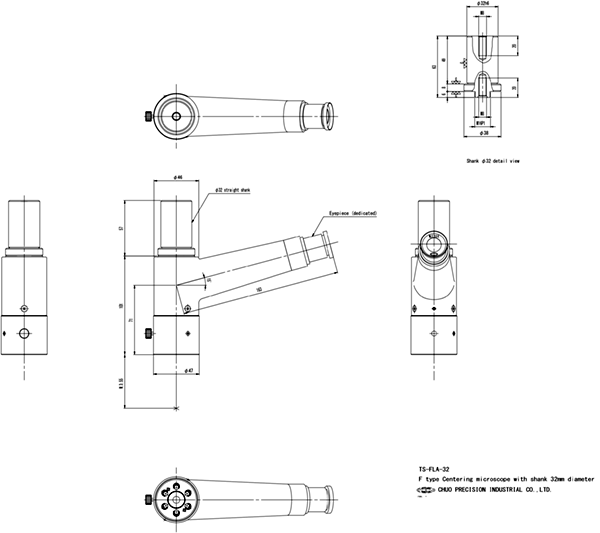

F type Centering microscope with shank 32 mm diameter
Estimate separately
Objective 2x
Eyepiece WF10x

Product documentation

Description

A centering microscope TS-FLA type can be attached to the main shaft (cutter shaft) of a machine tool, and centering can be easily performed by aligning the base point of the workpiece with the center of the microscope.
Special shanks (supplied) and special reticle can be manufactured separately.

Specifications

Shank 32 mm straight
Objective 2x
Eyepiece WF10x
Reticles Concentric circle with crossline
Total magnification 20x
Working distance(W.D.) 55 mm
Field of view φ8 mm
Centring accuracy +/-0.005 mm (factory setting)
Light source White LED
Power supply Illuminator with AC adapter (availabl AA battery x4)
Weight 1 kg
Supplemental note Example of use: universal milling machine, jig boring machine, electrical discharge machining machine, boring machine, drilling machine, diamond cutting machine, etc

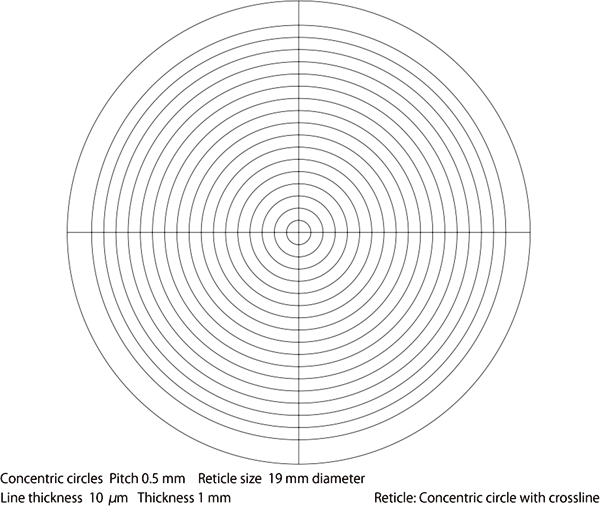

Reticle
