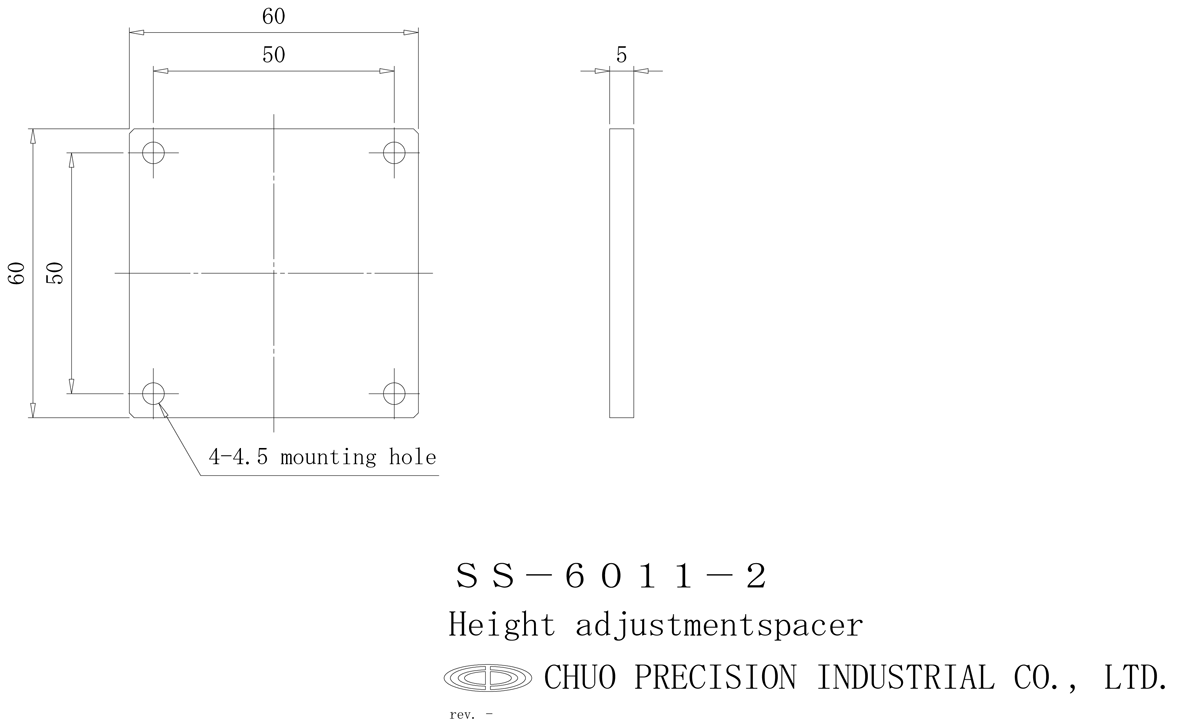

SS-6011-2
1
Height adjustment spacer 5t
Estimate separately
Classification
Height adjustment spacer
Size
60 mm x 60 mm
YES
Product documentation
YES
▲PAGE TOP
Description
A spacer that adjusts the height of stages, etc.
Height can be adjusted in 1 mm increments either individually or in combination.
10 mm thick and 20 mm thick spacers are available with different fixing positions so that they can be easily fixed when combining multiple spacers.
If you need a thickness of 50 mm or more, you can specify the thickness up to 100 mm. Please specify the required thickness.
(Example) If you need a size of 60 mm x 60 mm and a thickness of 80 mm, use SS-6011-80.
▲PAGE TOP
Specifications
Classification
Height adjustment spacer
Size
60 mm x 60 mm
Thickness
5 mm
Weight
0.05 kg
Material / Surface treatment
Aluminum alloy/Black Alumite
