Amici Roof Prisms

AMP-14

1
Amici roof prism
Estimate separately
Classification Amici roof prism (dach prism)(AMP)
External form C(mm) 19
YESRoHS対応状況

Product documentation

Description

Amici prism, also called “roof prisms” or “right angle roof prisms,” revert and invert the image as well as bend the line of sight through a 90°angle. Ideal for use in spotting scopes, and any optical instrument where it is desirable to take an inverted image from an objective, turn it right side up, and bend it through a 90° angle in order to maintain the correct visual orientation.

Specifications

Classification Amici roof prism (dach prism)(AMP)
External form A(mm) 14
External form B(mm) 19.8
External form C(mm) 19
External form CA(mm) 13
Material N-BK7
Externals Tolerance(mm) 0/-0.1
Angle tolerance ±5′
Resolution 6″
Surface Accuracy 1/2λ
Surface quality 60-40
Bevel Max 0.2mm×45°
Coating Uncoated

Curve(FOR REFERENCE ONLY)

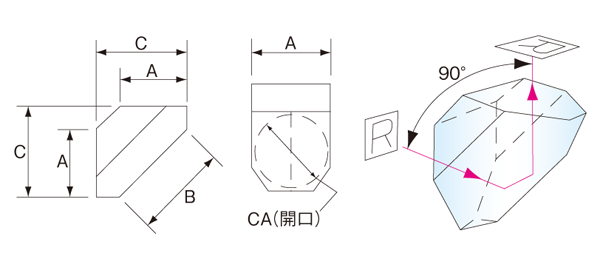

Specification drawings(or pictures)
