Littrow Dispersion Prisms
Littrow Dispersion Prisms

Littrow Dispersion Prisms

RTP-22

1
Rittrow dispersion prism (uncoated)
Estimate separately
Classification Rittrow dispersion prism (RTP)
Coating Uncoated
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

30° - 60° - 90° Littrow dispersion prisms can be used for a variety of applications. Uncoated littrow dipersion prism is used to disperse light into its component spectrum.
▲PAGE TOP

Specifications

Classification Rittrow dispersion prism (RTP)
Coating Uncoated
External form A(mm) 22
External form B(mm) 37.9
External form C(mm) 22
Material N-BK7
Externals Tolerance(mm) ±0.13
Angle tolerance ±10′
Surface Accuracy 1λ
Surface quality 80-50
Bevel Max 0.4mm×45°
▲PAGE TOP

Curve(FOR REFERENCE ONLY)

▲PAGE TOP

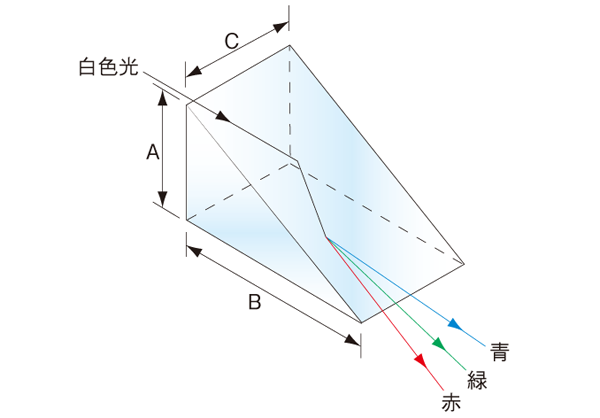

Specification drawings(or pictures)
