RTP-12.7A

1
Rittrow dispersion prism (aluminum coated)
Estimate separately
Classification Rittrow dispersion prism (RTP)
Coating Aluminum coated
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

30° - 60° - 90° Littrow dispersion prisms can be used for a variety of applications. Coated littrow dipersion prism is used to deviate the line of sight by 60°.
▲PAGE TOP

Specifications

Classification Rittrow dispersion prism (RTP)
Coating Aluminum coated
External form A(mm) 12.7
External form B(mm) 21.9
External form C(mm) 12.7
Material N-BK7
Externals Tolerance(mm) ±0.13
Angle tolerance ±10′
Surface Accuracy 1λ
Surface quality 80-50
Bevel Max 0.4mm×45°
▲PAGE TOP

Curve(FOR REFERENCE ONLY)

▲PAGE TOP

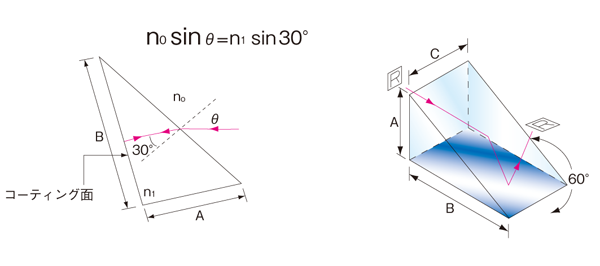

Specification drawings(or pictures)
