Infrared sensor Card

Q-32-R

1
IR sensor card (reflection type)
Estimate separately
Classification Reflection type
Sensitivity of infrared Sensitivety： near IR to 1600nm
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

This is card-type sensor designed for optical-axis adjustment and observation that is coated with ET (Electron trapping) material in powder form.
▲PAGE TOP

Specifications

Classification Reflection type
Excitation It could be excited on natural light or room light (450-500nm in particular) within one minute.
Sensitivity of infrared Sensitivety： near IR to 1600nm
Luminescent color RED
Luminous time Approximately 1 minute
Dimensions of luminous area(mm) 51×51
Dimensions of Card(mm) 102×64
▲PAGE TOP

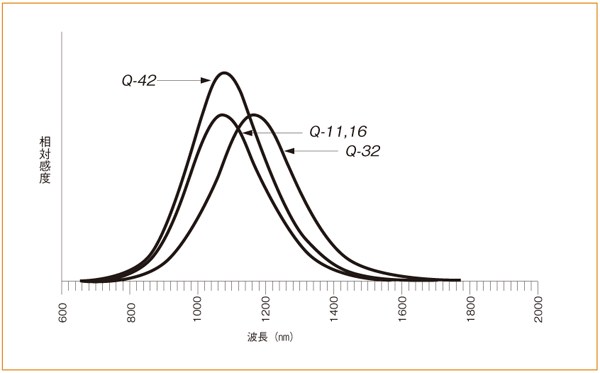

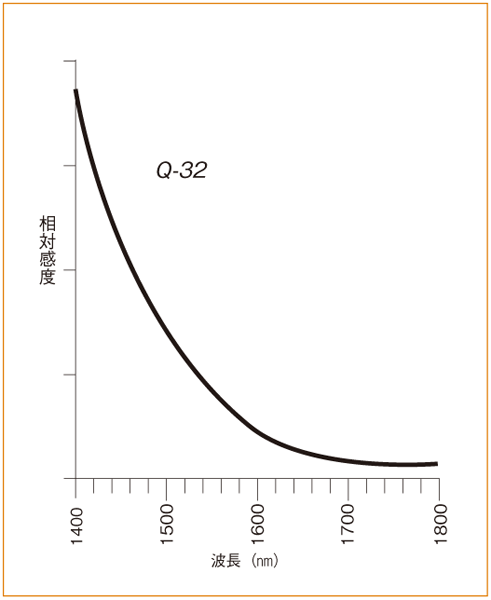

Specification drawings(or pictures)
