Resolution Chart

ZG-P

1
Resolution chart
Estimate separately
Pattern formation Positive (chrome pattern, clear background)

Product documentation

  • カタログPDF
  • 技術資料
▲PAGE TOP

Description

Resolution chart has line pairs pattern, whitch is ocnsist of bright line and dark line. That are resolution values , 1 line pair/mm to 228 line pair/mm.
▲PAGE TOP

Specifications

Pattern formation Positive (chrome pattern, clear background)
Material Soda lime glass
Outside dimension 50.8mm X 50.8mm X t1.5mm
Pattern USAF 1951 test pattern
▲PAGE TOP

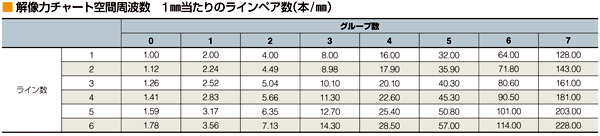

Specification table

▲PAGE TOP
