XY Stages(discontinued)

ALD-5012-G1M-S

3

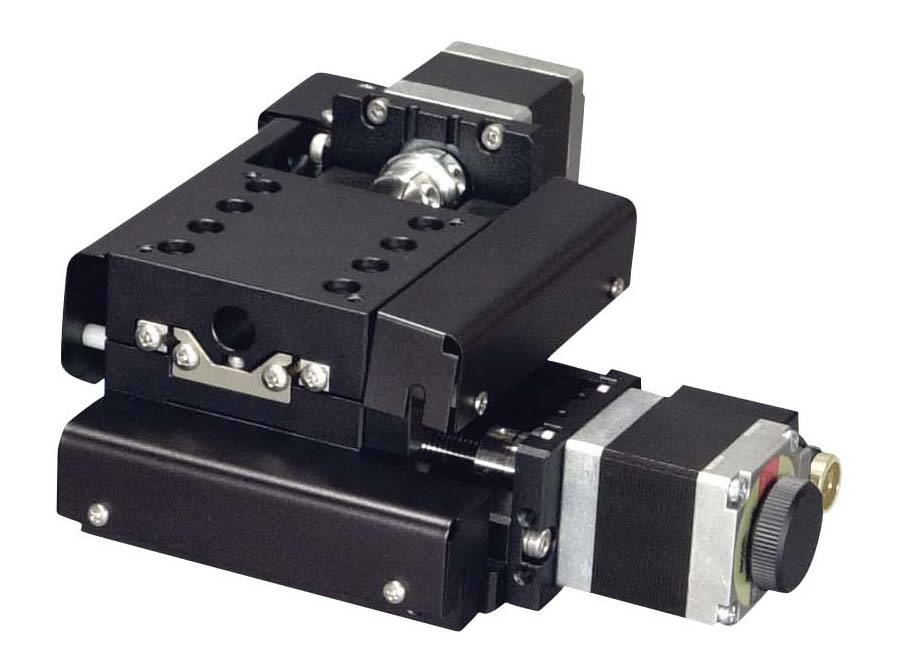

High-grade XY stage, Precision screw with scale (Standard type)
Discontinued
Direction of travel XY axis two directions
Travel +/-10 mm
Table size 50 mm x 50 mm

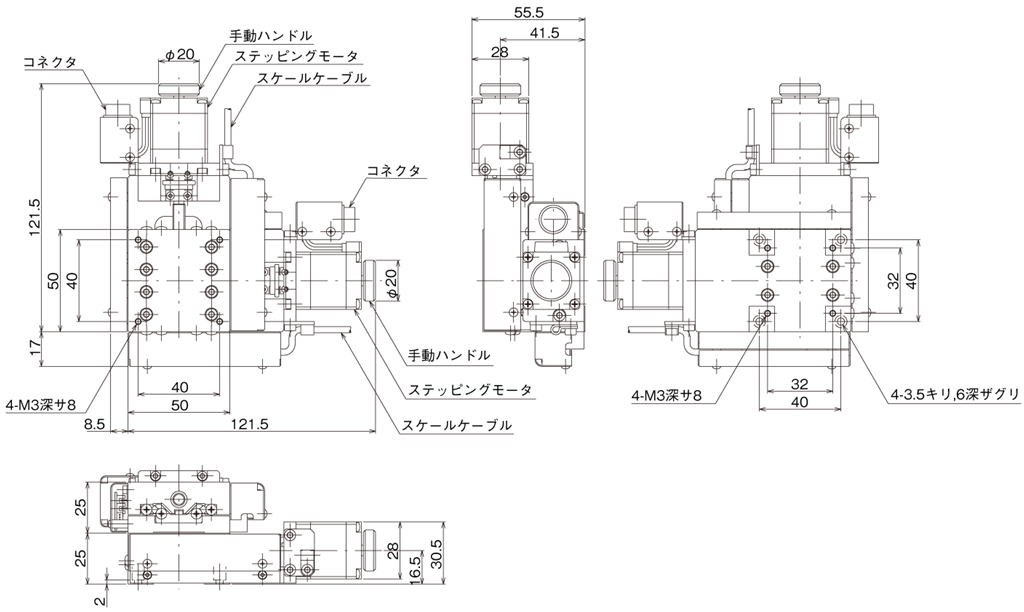

Product documentation

Description

Motorized XY stage with high precision and high rigidity by using V-groove and cross roller (HG-VCR) for guide and ball screw for feed.
It is widely used for precise positioning applications such as cameras, sensors, and workpieces.

Specifications

Direction of travel XY axis two directions
Travel +/-10 mm
Table size 50 mm x 50 mm
Motor Equivalent to PK523HPB (5-wire type pentagonal connection 0.75A /phase)
Resolution 0.002 mm
Feed screw Ball screw
Feed screw lead 1 mm
Guiding method HG-VCR (V-groove and Cross roller)
Travel accuracy HV Straightness (horizontal and vertical) 0.002 mm
Travel accuracy YP Yawing 15sec, Pitching 25sec
Positioning accuracy 0.008 mm
Repeatability +/-0.0003 mm
Lost motion 0.001 mm
Parallelism of motion 0.02 mm
XY Perpendicularity 0.006 mm
Moment rigidity 0.3sec/N*cm (Yaw), 0.4sec/N*cm (pitch), 0.4sec/N*cm (roll)
Load capacity 39.2 N (4 kgf)
Weight 0.86 kg
Maximum speed 16 mm/s (at 8,000 pps)
Material / Surface treatment Aluminum alloy/Black alumite
HOME sensor Normally closed contact (break contact, B contact) operation, Photo sensor
*non-adjustable
Pre-HOME sensor -
LIMIT sensor Normally closed contact (break contact, B contact) operation, Photo sensor
*non-adjustable
Compatible cable 0.75-B type (ACB-STM2, ACB-STM3, ACB-STM-D3, ARC-STM2, ARC-STM-D2, ARC-STM3 or ARC-STM-D3, be sold separately)
Scale model Made of GSI Mercury (Glass scale, cable length 3m)
Scale resolution 5μm to 0.05μm
Scale accuracy +/-60nm/0.02mm
Standard accessories Inspection certificate
Mounting screw : M3 Hexagon socket head cap screws (4 pcs)
Dedicated parameter setting
(Parameter No.4)
36

Connection method- Cable, Controller and Driver -

Operating principle of the Sensor and Timing Chart

Motor specifications
