Tool Scope type VL -CHUO PRECISION INDUSTRIAL CO.,LTD.-

TS-VLD-5-10-5

0

Tool Scope Type VL

Estimate separately

Microscope tube	Tilt angle: 45 degrees and built-in LED illuminator
Objective	OB-5
Eyepiece	OC-10

Product documentation

▲PAGE TOP

Description

TS-VLD type is a Tool Scope equipped with a white LED light source.
You can observe through the eyepiece. If you use a C-mount camera, you can observe it by using a TV adapter TS-TVA.
We will assemble the objective lens, eyepiece, and reticle before shipping.
Combinations such as without objective lens, without eyepiece, and without reticle are also possible. Please contact us.
ツールスコープ is the registered trademark of Chuo Precision Industrial Co.,Ltd. in Japan.Tool Scope is the trademark of Chuo Precision Industrial Co.,Ltd.

▲PAGE TOP

Specifications

Microscope tube	Tilt angle: 45 degrees and built-in LED illuminator
Mechanical tube length	163 mm
Objective	OB-5
Eyepiece	OC-10
Reticles	Crossed micrometer 2
Total magnification	50x
Working distance(W.D.)	13 mm
Field of view	φ3.6 mm
Light source	White LED, cable length 1.8 m
Power supply	Dedicated illuminator TS-EP2A with AC adapter (Input AC100 to 240V, 50/60Hz ), cable length 1.8 m
Weight	Microscope tube 0.6 kg, LED power supply 0.5 kg, AC adapter 0.1 kg

▲PAGE TOP

Table of magnification

▲PAGE TOP

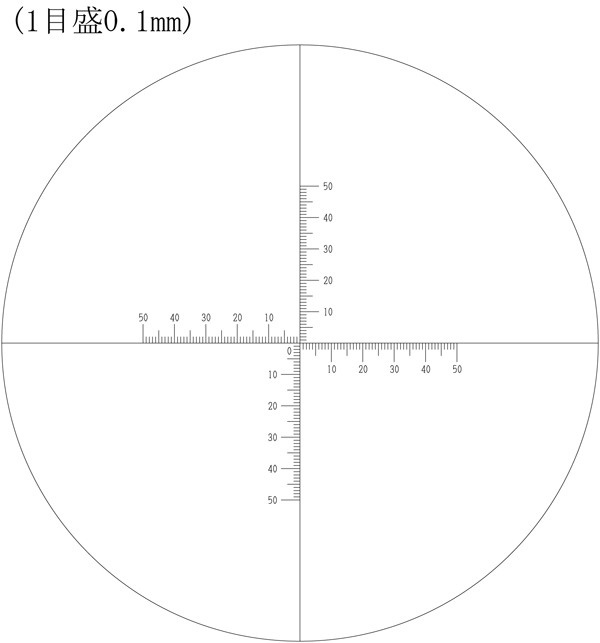

Reticle
